In most cases, cable is installed securely behind walls or inside conduits. That works fine for fixed wiring. But for portable generators, tools on busy job sites, or even appliances you occasionally pull out to clean behind, you need a cable that can handle constant bending and movement without wearing out. Royal cord is the name most people reach for in that category. It’s a common choice for portable power.
What Type of Wire is Royal Cord?
Royal Cord is a type of cable built for portable power and tough electrical jobs. It usually has a round shape, thick insulation, and a durable outer sheath, making it ideal for temporary power, mobile tools, and construction sites.
Flexible – Royal Cord uses finely stranded copper conductors. This allows the cable to bend easily around corners, fit into tight conduit runs, and withstand repeated coiling and uncoiling without internal breakage. For applications like generator hookups or portable tool cords, this flexibility means less fatigue at connection points and a longer service life.
Tough – Royal Cord features a double-layer PVC structure. It offers excellent abrasion resistance, resistance to minor impacts, and dust and moisture protection. Unlike flat twin cable or cheap round cord, it can be dragged across concrete, stepped on, or rolled over by wheelbarrows on a job site without cracking or exposing the copper.
Safe – Royal Cord is manufactured to comply with national electrical codes such as the Philippine Electrical Code (PEC) or IEC standards. The insulation is flame-retardant, meaning it resists catching fire and self-extinguishes if the heat source is removed.
Choosing the Right Royal Cord Size
When selecting Royal cord, the first thing to consider is size. Proper selection can effectively avoid common problems such as line overheating and voltage loss.
1.25mm² to 1.5mm² (≈16 AWG): These smaller sizes are best for low-power applications—temporary lighting, small appliances, or control circuits. They’re easy to install and route through conduits, but it’s important not to exceed their rated capacity.
2.0mm² to 2.5mm² (≈14 AWG): This is the most common wire gauge used in household appliances. It can be used for everyday sockets, televisions, refrigerators, microwave ovens, and other electrical equipment. In practical applications, we’ve found that it meets the current needs of most households and is also easy to maintain and replace later.
3.5mm² to 5.5mm² (≈12 AWG to 10 AWG): Ideal for higher-powered appliances like air conditioners, washing machines, or water pumps. In my experience, using a larger cable in these cases noticeably reduces heat buildup and improves safety, especially during peak usage. For example, using 3.5mm² instead of 2.5mm² for a 1.5 HP air conditioner makes a noticeable difference.
8.0mm² to 14mm² and beyond: These heavy-duty sizes are reserved for industrial applications. Main power lines, generators, large machinery, and three-phase power distribution systems require cables of this caliber.
Useful tips: When in doubt, measure the full-load current and the one-way cable length. Then add 10% for safety.
What Types Are Out There?

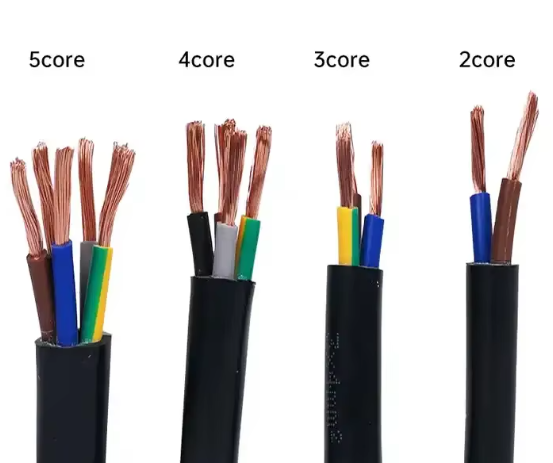

By Core Count
2-Core Royal Cord
This type contains two insulated copper wires, commonly used for simple circuits like lamps, fans, or small appliances where grounding isn’t required. Its straightforward structure makes installation quick and minimizes bulk for everyday home use.
3-Core Royal Cord
With an added ground wire, 3-core Royal cord is a safer choice for appliances such as refrigerators, washing machines, or power tools—especially those with metal cases. The dedicated earth conductor helps reduce electrical risks in both home and workshop environments.
4-Core Royal Cord
Four-core cables typically provide three phases plus neutral (or two lives, neutral, and ground) for three-phase power, industrial machines, or backup generator changeover switches. Where it shines is on job sites with portable three-phase distribution, but always label each core at both ends.
Beyond core count, you’ll also encounter different insulation materials. Most Royal Cord uses PVC insulation, which offers good flexibility and flame retardancy at a reasonable cost. However, for extreme environments, you might want thermoset options like EPDM rubber, which provide superior heat, oil, and chemical resistance. These are commonly found in industrial-grade cable, such as H07RN-F rubber cable.
By Jacket Type
- SJTW (Service, Junior, Thermoplastic, Weather-Resistant):
Ideal for general use, both indoors and outdoors. Its flexibility and resistance to sunlight and moisture make it a solid choice for temporary lighting or outdoor extension cords.
- SJTOW (Service, Junior, Thermoplastic, Oil-Resistant, Weather-Resistant):
Designed for environments where oil exposure is common, such as garages or workshops. The oil-resistant jacket adds an extra layer of protection.
- SOOW (Service, Oil-Resistant, Oil-Resistant Jacket, Weather-Resistant):
Built for the most demanding conditions—industrial sites, construction zones, or anywhere equipment undergoes frequent movement and exposure to oil, water, and weather.
- SJOOW (Service, Junior, Oil-Resistant, Oil-Resistant Jacket, Weather-Resistant):
A lighter alternative to SOOW, suitable for portable tools and temporary setups, while still delivering solid protection against oil and weather.
Custom Royal Cord Options
Some manufacturers, including ZW CABLE, offer custom Royal cord solutions. These can include special color coding, additional shielding for EMI protection, or unique jacket materials for extreme environments.
Why You Cannot Use THHN in Place of Royal Cord?
We often receive questions from buyers: “Can I just use THHN in a flexible conduit instead of Royal Cord to save money?”
The answer is a firm No. THHN is designed for permanent, fixed installation. Its insulation is slick (for pulling through pipes) but stiff. If you use it for a portable tool or a generator, the constant bending will cause the PVC to crack and the stiff copper strands to break. Conversely, using Royal Cord for permanent building wiring (like inside your house walls) is often a violation of the PEC because portable cords aren’t rated for the same long-term heat buildup inside enclosed walls as building wire.
Where Royal Cord Gets Used?
One of the standout qualities of Royal cord is its adaptability.
- Household Extension Cords
Royal cord is the go-to for DIY extension cords at home. For example, when a floor lamp or kitchen appliance is just out of reach, a length of 2×1.5mm² or 2×2.5mm² Royal cord with a plug and socket solves the problem. The stranded copper core resists fatigue at bends, while the double PVC sheath stands up to foot traffic and furniture. It lasts far longer than basic flat cables.
- Industrial Equipment Power Supply
On sites without grid power, portable generators feed welders, air compressors, or concrete mixers. These machines are moved often, so cables get coiled, dragged over gravel, and driven over. A Royal Cord Wire handles repeated flexing and abrasion, maintaining insulation integrity where ordinary rubber cords crack. Contractors keep a dedicated reel for generator hookups that lasts a full project season.
- Temporary Power for Construction and Events
On construction sites or at outdoor events, temporary power distribution is a constant challenge. Royal Cord is often used to connect generators to lighting towers, portable distribution boxes, or power tools. For instance, during an outdoor festival setup, Royal Cord might run from a generator to a row of food stalls. Its thick insulation protects against rain and mud. Electricians and event organizers value Royal Cord for its reliability and ease of handling, especially when quick setup and frequent adjustments are required.
Selecting the right Royal cord means considering both your technical requirements and the environment in which the cable will be used. If you’re looking for expert advice and dependable products, ZW CABLE is ready to assist you at every stage of your project. ZW CABLE has been manufacturing and exporting flexible power cables for over 30 years. We supply genuine royal cord wire in all common configurations: Royal cord 16, 14, 12, 10, as well as 2.5 mm royal cord and 3.5 mm royal cord .
Frequently Asked Questions (FAQ)
Q1: What sets Royal cord apart from standard extension cords?
A: Royal cord is designed for higher durability and resistance to oil, water, and abrasion, making it suitable for demanding environments where standard cords may not perform reliably.
Q2: How do I know if my Royal Cord is undersized?
A: Do the “Hand Test.” If the cord feels hot to the touch while the appliance is running, it is likely undersized for the amperage. You should immediately upgrade to a thicker gauge (e.g., move from 2.0mm² to 3.5mm²) to prevent a fire.
Q3: Is Royal cord suitable for outdoor use?
A: Yes, many types of Royal cord—such as SJTW and SOOW—are specifically built to withstand outdoor conditions, including moisture, sunlight, and temperature variations.
