4 Triad Multi-Conductor Cable

According to IEC and BS Standard
PVC Cable
Approved by ISO, CE, SGS
Place of Origin: Henan, China
HS Code: 8544492100
Packing: 100 Meters

5

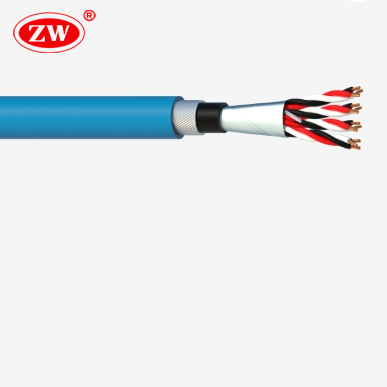

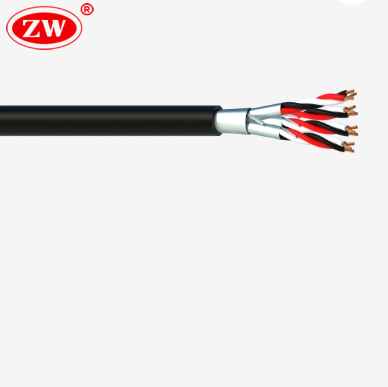

4 traid cable is a rugged, multi-conductor control cable. It is designed for mission-critical applications requiring electromagnetic interference (EMI) suppression, flexibility and durability. Each triad cable consists of three black, white, and red color-coded conductors stranded together with a tinned copper row of drain wires. Each conductor is individually shielded with aluminum polyester foil for 100% coverage and further protected by an integral foil shield. Featuring a 16 AWG bare copper core and flame-retardant PVC insulation, the cable is suitable for industrial automation, medical systems, and energy infrastructure, providing reliable signal and power transmission even under extreme conditions (-40°C to +105°C).

Product Features

1. Ultra-flexible

2. Flame & Environmental Resistance:

Flame Retardant: Meets IEC 60332-1 for low smoke and zero halogen emission.

Moisture/Oil Resistance: Withstands humid, oily, or chemical-laden environments like oil rigs or food processing plants.

3. Resistant to chemical solvents, ultraviolet rays and chemical corrosion; adaptable to outdoor, oil or high humidity environments.

Voltage Rating: 300V AC/DC (unshielded), 600V AC/DC (shielded).
Conductor Gauge: 16 AWG
Number of Triads: 4
Conductor Stranding: 7×24
Communication Wire Gauge: 22 AWG
Communication Wire Stranding: 7×30
Inner Shield Drain Conductor: 18 AWG
Inner Shield Drain Stranding: 7×26
Outer Shield Drain Conductor: 16 AWG
Outer Shield Drain Stranding: 7×24
Total Jacket Thickness:: 0.053 Inch
Cable Diameter: 0.57 Inch
Net Weight per 1000 ft: 230 lbs

Conductor: Class B 7-strand annealed bare copper (ASTM B3/B8 compliant)
Insulation: Polyvinyl Chloride (PVC)
Shielding: Aluminum Foil-Mylar Tape (100% coverage) + tinned copper drain wire
Jacket: Polyvinyl Chloride (PVC)

FAQ

What is the primary application of 4 Triad Shielded Cable?

It is used for transmitting analog and digital signals in process control systems, specifically connecting 3-wire instruments like Resistance Temperature Detectors (RTDs), solvenoids, or telemetry systems to PLCs and DCS.

What is the function of the Drain Wire?

The drain wire (made of Tinned Copper) is in continuous contact with the aluminum foil shield. It provides a low-resistance path to ground, allowing static electricity and induced noise to be safely drained away from the signal conductors.

What UL standards apply to 4 Triad cable?

Common UL listings include UL 13 (Power-Limited Tray Cable - PLTC) and UL 2250 (Instrumentation Tray Cable - ITC).
