Take a look behind the scenes in any plant or utility room and you’ll notice racks of seemingly similar grey cables all doing very different jobs. On drawings they’re often labeled “C” for control and “I” for instrumentation, but in practice these two families are frequently mixed up, mis-specified, or treated as interchangeable.
We’re here to clear up the confusion once and for all. In this guide, you’ll get a straightforward breakdown of how control cables and instrument cables differ—from their construction to the key factors you need to consider when choosing between them.
If you’re completely new to this topic, it’s worth first reading the fundamentals in Control Cable Basics and then coming back here for the deeper comparison.
Functional Differences: Power vs. Signal Transmission
Because control and instrument cables often run side by side in the same trays, it’s easy to assume they do the same job. But that’s a recipe for trouble.
Control cables typically carry Discrete Signals or low-voltage power distribution.
- Voltage: Usually 120V AC or 24V DC
- Current: Ranges from milliamps up to several amps (e.g., inrush current for a large contactor coil)
- Function: Binary status (Open/Closed, On/Off, Start/Stop)
- Tolerance: High. For example, if a 120V signal spikes to 125V due to noise, the relay still closes—no problem.
For a deeper dive into how these differ from high-amperage energy transmission, I recommend reading our comparison on Power Cable vs. Control Cable.
Instrumentation cables carry Analog Signals.
- Voltage: Very low (often millivolts).
- Current: Standard 4-20mA loops or 0-10V signals.
- Function: Measurement, modulation, and data transmission.
- Tolerance: Zero. Even a small noise-induced change (e.g., 0.5mA in a 4-20mA loop) can cause significant errors, such as a PLC misreading a tank level and triggering false alarms or shutdowns.
Construction Differences: Pairing and Shielding
Pairing:
Control cables—especially types like YY Cable (unshielded), SY Cable (armored with steel wire braid), and CY Cable (shielded with tinned copper braid)—are typically built using a multiconductor concentric lay, where all insulated wires are bundled together in a single, round geometry; this design is robust and sufficient for discrete, high-level signals.
In contrast, instrumentation cables rely on a twisted pair (or triad) architecture. By twisting conductors together with a precise “lay length,” the cable physically balances the signal against electromagnetic interference.
Shielding:
Control cables may have a basic foil or braid shield. This is usually enough for most plant noise.
Instrumentation cables, though, need more. They often use an Individual and Overall Shield (ISOS) design: each twisted pair is wrapped in foil to prevent crosstalk, and the whole bundle gets another shield for extra protection.
However, a shield is only as good as its grounding. Improper grounding creates “ground loops” that can destroy signal integrity. For a detailed breakdown of foil vs. braid shields and grounding protocols, see our article: Understanding Shielded Cable and Difference.
Why do Instrumentation cables use twisted pairs while Control cables use concentric stranding?
When a magnetic field (noise from a nearby motor) hits a cable, it induces a voltage spike.
Instrumentation cables use twisted pairs so that both conductors “share” interference as equally as possible. As the two wires twist around each other, each one alternates between being closer to and farther from external noise sources. Over the whole length, they pick up almost the same amount of interference. A differential input looks only at the difference between the two wires, so this common noise largely cancels out and the original signal stays clean and stable.
Control cables are designed more around having many cores, easy routing, and reasonable cost, because they usually carry on/off commands, relay coils, and other signals that are much less sensitive to small amounts of electrical noise. In most cases, these control signals still work reliably even if there is some interference, so there is no need to twist every pair individually. A standard multicore layout is usually sufficient, with overall shielding added only when the environment is particularly noisy.
Voltage Differences: Ratings and Classifications
A common trap is misunderstanding UL voltage ratings and cable tray rules.
- Instrumentation Cable (PLTC): Often rated for 300V (Power Limited Tray Cable).
- Control Cable (TC): Standard rating is 600V (Tray Cable).

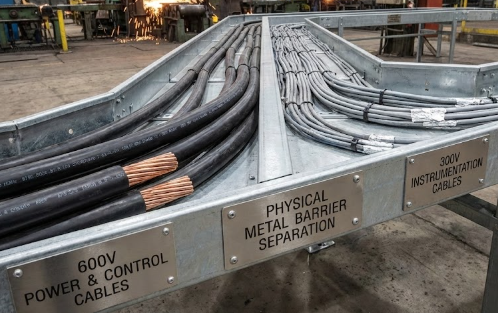

The Operational Risk: In heavy industrial environments (steel mills, refineries, etc.), electrical codes generally prohibit running 300V instrumentation cable in the same tray as 600V power/control cables unless a physical metal barrier separates them. Never bundle a control cable (carrying 120V solenoid power) with an instrumentation cable (carrying a 4-20mA signal). The magnetic field from the solenoid inrush can induce a spike in the sensor cable. Maintain a minimum separation of 6 inches (150mm).
Expert Tip: Many instrumentation cables are now dual-rated as 600V ITC (Instrument Tray Cable) or TC-ER. For mixed-use trays, always specify 600V-rated instrumentation cable. It costs a bit more but eliminates code violations and simplifies installation.
Technical Specification Quick Reference
| Feature | Control Cable | Instrumentation Cable |
| Primary Use | On/Off Commands, Motor Starters, Solenoids | Sensors (Temp, Flow, Pressure), Data |
| Signal Type | Discrete (Digital), High Current | Analog (4-20mA, 0-10V), Low Current |
| Geometry | Multi-conductor (Cabled together) | Twisted Pairs or Triads |
| Shielding | Optional (Foil/Braid) | Mandatory (Individual + Overall) |
| Voltage Rating | 600V / 1000V | 300V (PLTC) or 600V (ITC) |
| Noise Immunity | Moderate | Superior (Due to Twisting) |
| AWG Size | Typically 18 AWG – 10 AWG | Typically 22 AWG – 16 AWG |
Practical Examples for Picking the Right Cable
Common, correct uses of control cable include:
- Hard-wired control circuits in MCCs and control panels
- Remote start/stop commands to motors and drives
- Open/close control to on-off valves, dampers, shutters
- Position feedback from limit switches and dry contacts
- Local control stations and push buttons
In all of these, a missed pulse or minor noise glitch is rarely catastrophic; you mainly care that the signal gets there reliably and that the cable can withstand the installation environment.
Instrumentation cable should be the default for:
- 4–20 mA loops from transmitters to DCS/PLC
- Thermocouple and RTD temperature measurement
- Vibration, level, flow and pressure sensors
- Safety instrumented system (SIS) analog inputs
- Low-level voltage or frequency signals from sensitive sensors
In these cases, small errors matter. A few percent drift in a 4–20 mA loop can lead to incorrect control actions, spurious trips, or hidden failures.
When you know the real differences between control cables and instrument cables—and make your choices with care—you’re setting yourself up for fewer surprises, smoother operations. Moreover, cable manufacturing requires precision. Do not rely on generic suppliers for critical process control. We have compiled a list of vetted industry leaders here: Global Control Cable Manufacturers and Suppliers.
Frequently Asked Questions (FAQ)
Q: Can I use shielded Control Cable for analog sensors?
A: You can, but it is risky. While the shield helps, Control Cable lacks the twisted pair geometry. Without the twist, the cable is susceptible to magnetic field interference. For short runs in low-noise environments, it might work. For long runs or near VFDs, it will likely result in unstable signal readings.
Q: What does “ITC” stand for on the cable jacket?
A: ITC stands for Instrument Tray Cable. It is a UL designation that allows the cable to be used in industrial control circuits (up to 150V and 5 Amps) without conduit in cable trays. It is highly desirable for instrumentation because it simplifies installation.
Q: Why are Instrumentation cables usually smaller (e.g., 20 AWG) than Control cables?
A: Analog signals (like 4-20mA) carry negligible current. Voltage drop is rarely an issue because the “receiver” (the PLC card) has high impedance. Therefore, we don’t need the thick copper of a 14 AWG control cable; we prefer the thinner wire because it allows for tighter twisting and smaller overall cable diameter.
