Data transmission relies heavily on telecom cables. And communication cables are at the heart of this communication network, providing high performance connectivity to a number of industries. Perhaps you are selecting the type of communication cable you need for your application or looking for a high-quality cable manufacturer. Don’t worry, with the expertly guided content of the following blog, we offer specialized solutions for your wire and cable needs.
Overview of Communication Cable

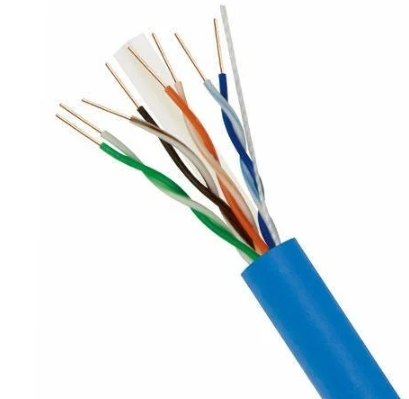

What is Communication Cable?
A communication cable is a low-voltage cable used to transmit electrical or optical signals. Unlike power cables that deal with high voltages and currents, communication cables are targeted for low voltage and low current applications. It shows excellent performance in applications including data transmission, Ethernet networking and control circuits. Cables typically consist of multiple wires or optical fibers that are encased in an insulating material and jacket that maintains signal integrity and reduces interference.
Materials Used in Communication Cables
Conductor : Communication cables have tinned copper conductors.
Insulation: Polypropylene (PP) and polyvinyl chloride(PVC ) jackets are examples of insulation materials.
Polypropylene (PP) is a versatile insulating material for communication cables. It is highly resistant to moisture and chemicals. It has good durability in a variety of environments.
Polyvinyl Chloride (PVC) is a common insulating material widely used in communication control cables. It has excellent flexibility and electrical insulation properties and is well suited for easy-to-install indoor applications.
Jacket: PE and PVC are two common materials used.
PE sheathing performs well in outdoor environments with excellent weathering and UV resistance
PVC jacketing is typically used for indoor applications due to its good mechanical strength and corrosion resistance.
Applications of Communication Cable
What areas are communication cables favored for? Communication cables serve diverse applications, each customized for specific needs and functions. The following different applications demonstrate the versatility of communication cables:
- Computer Wiring – Connecting desktops to servers for data sharing in an office network.
- Network Cabling– Setting up LAN and WAN to assure seamless communication within the office.
- Wired Voice Transmission– Landline telephones for clear voice communication
- Broadcasting-Transmit audio and video content to a wide audience.
Ethernet cabling-Cat6 cables connect computers for fast and stable Internet connections
- Industrial cabling-enhances industrial process automation and control systems
- Wired Data Transmission-Build data centers for secure data transmission
- Security Systems – Wiring for theft and burglary alarms
- Smoke Detectors– Wiring smoke detectors in commercial buildings for timely fire alarms.
- Signal Monitoring Systems-Sensors and monitors to track the status of equipment in a facility in real time
- Healthcare– Telemedicine, electronic health records, and real-time patient monitoring systems.
Different Types of Communication cable
There are many types of communication cables on the market, and in this guide we concentrate on the five most common ones:

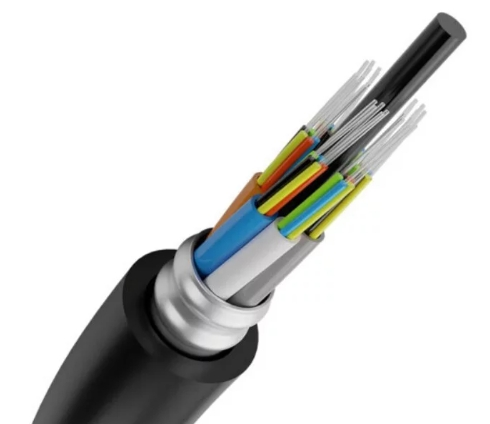

1.Fiber Optic Cable
Fiber optic communication cables use pulses of light to transmit signals through optical fibers encased in an insulating jacket. These cables consist of a core, cladding, and housing that guarantees efficient data transmission and protection from external elements. Each fiber optic cable is labeled with the type of jacket material. These types include polyethylene (PE), polyurethane (PUR), polyvinyl chloride (PVC), and other non-conductive and heat resistant coatings.
They are available in single-mode and multimode types, each with specific uses. Color-coded jacketing simplifies identification and use. Light blue indicates multimode cables. Orange indicates all other multimode cables. Yellow indicates single-mode cables. Single-mode cables outperform multimode cables despite their higher installation cost. Single-mode fiber optic cables have high bandwidth and low attenuation, making them ideal for long-distance communication, while multimode fiber optic cables are suitable for short-distance applications due to their ability to transmit multiple wavelengths.

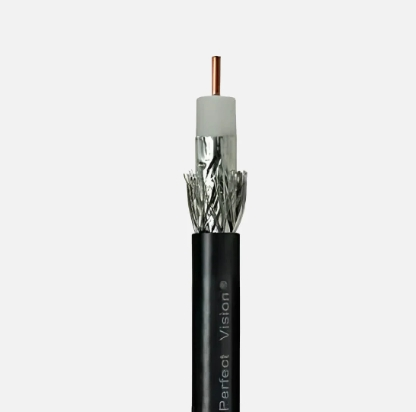

2. Coaxial Cables
Coaxial cables usually consist of a center core conductor, a dielectric insulator, a metal shield, and a plastic jacket to protect it. Coaxial cables are typically used to connect feeder wires for radio transmitters and receivers, as well as television or telephone communications data transmission to residential.

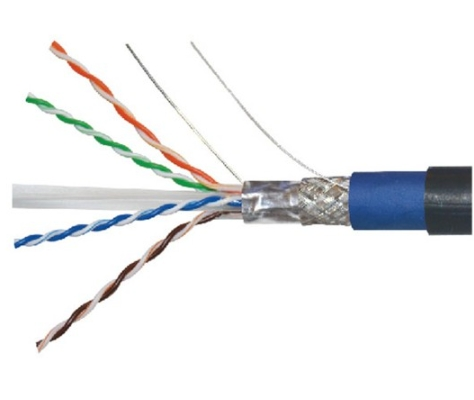

3. Ethernet Cable
Ethernet cables are the most common type of cable for many applications. It is essential for connecting homes and businesses to the Internet through a router. They come in different configurations such as Cat5e, Cat6, and Cat6a, each offering a different bandwidth capacity. higher categories such as Cat6 offer higher performance.
In addition, cables in these categories can have different configurations. For example, most copper cables have a stranded construction. Also, Ethernet cables are available in both shielded and unshielded versions. Shielded cables have a protective coating to minimize connection problems and are ideal for high interference environments. Unshielded cables, while more common, lack this extra protection and are suitable for general use.

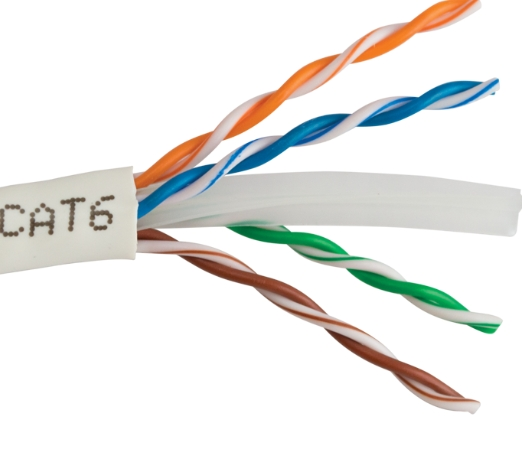

4. Twisted pair cable
Twisted pair communication cables are an integral part of modern digital communication networks. The cable consists of pairs of insulated copper wires twisted together to greatly reduce electromagnetic interference and crosstalk from external sources.
There are two main types of twisted pair cables: unshielded twisted pair (UTP) and shielded twisted pair (STP). UTP cables are commonly used for Ethernet and telephone lines due to their cost-effectiveness and ease of installation. However, STP cables have additional insulation and are often used in industrial environments where the potential for interference is high.

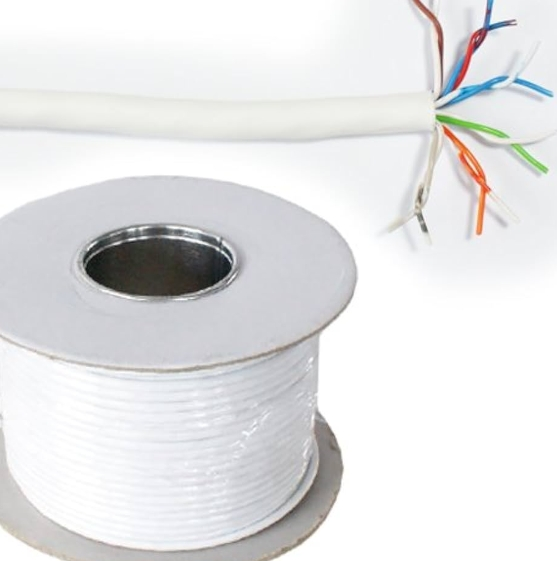

5. Telephone Cable
Despite their decline in popularity, telephone cables are still essential in many business applications. They transmit voice and sound signals efficiently and come in a variety of forms: indoor telephone cables, outdoor telephone cables, and modular options. They continue to perform a role in maintaining a reliable communications network in professional environments.
Alright folks, we’ve covered a lot of ground today about communication cables! From the basics to the materials used and their various applications, communication cables are clearly an important player in our modern world. Whether you are connecting your computer or building a powerful network, the right cable can make all the difference. At ZW Cable Manufacturer, we offer wire and cable made from quality materials, whether you’re looking for fiber optic, coaxial, or Ethernet cables. What’s more, our team of experts is ready to help you choose the best cable for your specific application. Reach out to us and let’s make your connectivity issues a thing of the past!
