Tinned Marine Battery Cable
- According to IEC and BS Standard
- Approved by ISO, CE, SGS
- Place of Origin: Henan, China
- Number of Cores:1
- HS Code: 8544492100
- Packing: 100 Meters
- MOQ: 500 Meters
5
- Product Details

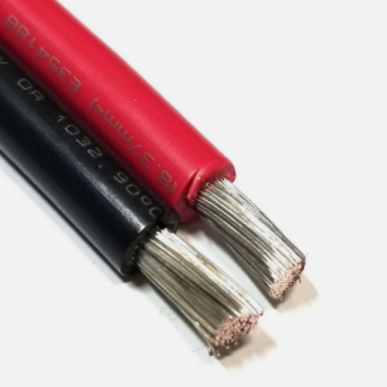

Marine battery cable is a high-flexibility, tin-coated copper electrical cable specifically engineered for primary power connections in boats, yachts, and commercial vessels. Designed to withstand the harsh maritime environment, it is used to connect battery banks to starter motors, inverters, windlasses, and main distribution panels.
“Marine-grade” advantages
We employ a professional crimping process and use materials that can withstand harsh environments. The tinned copper conductors are coated to provide better corrosion resistance than bare copper. The ultra-fine stranding offers flexibility, making it easy to work with in tight spaces. The PVC insulation is rated for 105°C dry and 75°C wet, and it withstands oil, fuel, acid, and UV exposure. These are conditions commonly found in marine environments.
Applications & Installation
This cable is typically installed in engine compartments, battery boxes, and along hulls where moisture and heat are present. Built to UL 1426 and ABYC E-11 standards, it meets industry requirements for marine safety, temperature resistance, and flexibility.
- Specification
- Voltage Rating: 600 Volts
- Temperature Rating: 105°C (221°F) Dry / 75°C (167°F) Wet
- Approvals: UL 1426, ABYC E-11, USCG CFR 31, RoHS Compliant

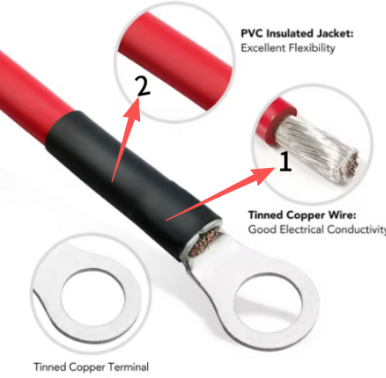

- Construction
- Conductor: Tinned Copper (Type III Stranding)
- Insulation/Jacket: PVC
- Insulation Color: Red, Black
- Parameter
| Conductor Size | Stranding (0.25mm) | Conductor Diameter (in.) | Insulation Thickness (in.) | Total Diameter (in.) | Max Amp |
| 10 AWG | 105 | 0.12 | 0.04 | 0.19 | 60 |
| 8 AWG | 168 | 0.15 | 0.05 | 0.24 | 80 |
| 6 AWG | 253 | 0.20 | 0.06 | 0.32 | 115 |
| 4 AWG | 370 | 0.23 | 0.06 | 0.35 | 150 |
| 2 AWG | 634 | 0.30 | 0.06 | 0.42 | 205 |
| 1 AWG | 836 | 0.33 | 0.06 | 0.48 | 245 |
| 1/0 AWG | 1004 | 0.37 | 0.08 | 0.53 | 285 |
| 2/0 AWG | 1255 | 0.43 | 0.08 | 0.59 | 325 |
| 3/0 AWG | 1584 | 0.49 | 0.08 | 0.65 | 385 |
| 4/0 AWG | 2047 | 0.56 | 0.08 | 0.72 | 440 |
