Bare Conductor: Performance, Application and Types

Conductors and cables form the pivotal infrastructure for the efficient and safe conveyance of electrical power. When we talk about bare conductors, we mean the wires don’t have any covering or insulation. In some cases, bare conductors are capable of better electrical operation as they are suitable for some specific setups in our electrical systems. We aim to clarify the fundamental concepts of bare conductors by focusing on their structural dimensions, compositional materials, and various configurations. Furthermore, it will explore their uses, ranging from grounding to overhead transmission lines.

Additionally, installation protocols and safety measures required to handle conductors will also be covered in depth. We can further focus on the rationale for using bare ground wire and identifying reliable sources for purchasing quality bare copper wire. Through a comprehensive overview, we will have a clearer understanding of the pivotal role of bare conductors in the electrical foundation, so that we can select the best bare wire conductor products that will improve operational efficiency and safety standards for the electrical project.

What is a bare conductor?

Bare conductors are those without any insulation or protective layer. They are mainly made of materials known for their high electrical conductivity such as copper and aluminum. It optimizes the efficiency of power transmission and distribution. Pure copper is usually preferred material due to its excellent electrical conductivity and corrosion resistance, while aluminum is chosen for its advantages in terms of weight and cost. When choosing a specific material type, we should consider the requirements of the particular environment.

The size of the conductor wires must be carefully selected after specific requirements to meet the expected electrical needs. The sizing of conductors is typically expressed using the American Wire Gauge (AWG) system for measurements up to about one inch in diameter. Sizes are then usually given in square millimeters or kcmil. The precise sizing assures that the conductor can safely carry the intended load without excessive heat generation or voltage drop. If the electrical system needs to be kept safe and efficient while avoiding overloads and failures, it must be sized correctly.

The arrangement of stranding within a conductor significantly influences its flexibility and structural integrity. Bare conductors can be fabricated as either solid (comprising a single, unified wire) or stranded (composed of several intertwined wires). Solid conductors are usually chosen for situations where the wire doesn’t need to bend or move much. They offer a cost-effective solution that’s easy to work with. Conversely, stranded conductors offer superior flexibility, so it is more suitable for situations where the conductor is subject to frequent bending or flexing. The selection between solid and strand forms facilitates customized solutions that cater to the distinct requirements of diverse electrical tasks, ranging from fixed installations to adaptable linkages.

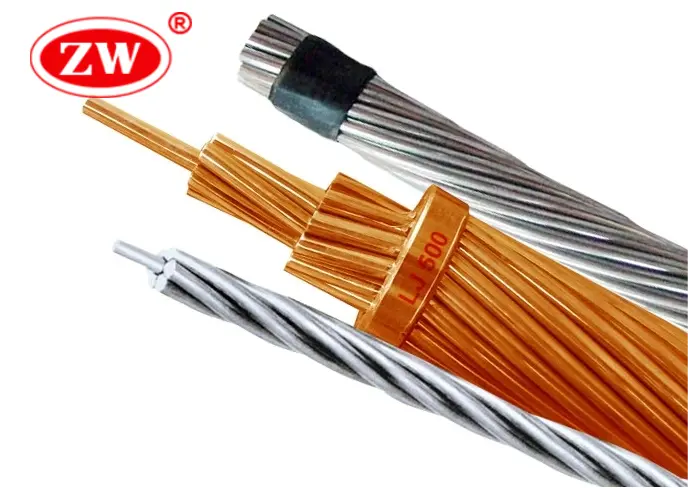

bare conductor

So, in what areas does bare wire play a key role? Having established the foundational bare wire meaning, we now turn our focus to their practical applications.

What are the applications of bare conductors?

Bare copper cable conductors are used in a wide range of applications and play a central role in the infrastructure and function of modern electrical systems. Primarily, they are employed in overhead lines where they serve as the main pathway for electrical transmission from power plants to substations and eventually to consumers. The absence of an insulating layer on the conductor enables efficient heat dissipation, which is ideally suited for high-voltage and long-distance power transmission across a range of environmental conditions.

The use of bare electrical wiring is of paramount importance in the field of grounding and earthing systems. They provide a secure and low-resistance route for fault currents to be dissipated into the ground, greatly diminishing the potential for electrical dangers and bolstering the overall protection of the system. It can also protect the safety and reliability of electrical installations and equipment and also serve as a necessary measure against the risk of electric shock and fire.

Furthermore, bare conductor wires are utilized in lightning protection systems. By offering a direct conductive cable path to the ground, they minimize the potential damage caused by lightning strikes on buildings and other structures. Bare conductors are also used for bonding and bridging elements in electrical systems. It can guarantee the continuity and stability of the entire network.

Bare conductors are key in improving the efficiency, safety and reliability of electrical systems worldwide while highlighting their important role in a variety of residential and industrial environments. Plus, we can further look into the various options that fall under the categorization.

Different types of bare conductors

Bare conductors are an integral part of electrical systems and are categorized according to their material composition, construction and specific application requirements. The different types of applications allow us to provide tailored solutions in various areas such as power transmission, bare copper conductors for grounding and utility applications. The following is an overview of the different types of commonly used uncoated wires:

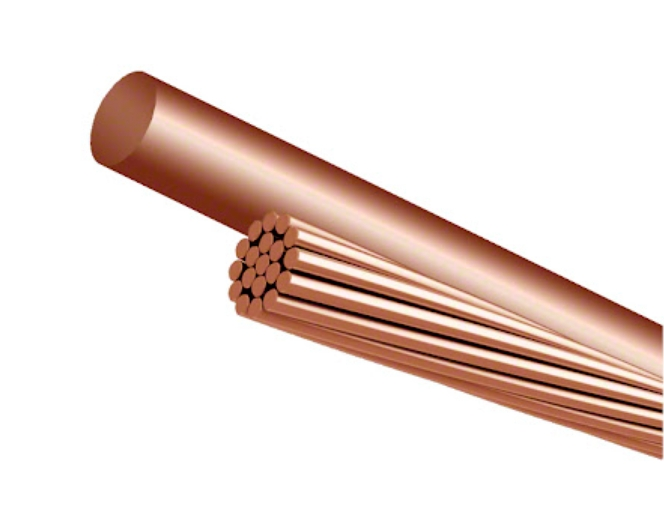

Solid and Stranded Conductors: Fundamentally, bare electrical conductors are classified into two main categories: solid and stranded. Solid bare copper wire is made from one continuous piece of metal and is well suited for situations where bending needs to be minimized. Stranded copper wire conductors are fabricated by intertwining several wires, enhancing both the conductor’s pliability and its ability to withstand fatigue. Such a configuration is especially advantageous in contexts requiring the conductor to undergo frequent movements or alterations in shape.

Solid and Stranded ConductorsBare Copper Conductors: In terms of corrosion resistance and exceptional conductivity, the bare copper wire conductor is the ideal option for a grounding system. Their ability to efficiently provide a safe path for excess electricity to disperse into the earth. Furthermore, stranded bare copper wire is widely used in residential, commercial and industrial applications. It is vital in maintaining electrical safety and system integrity.

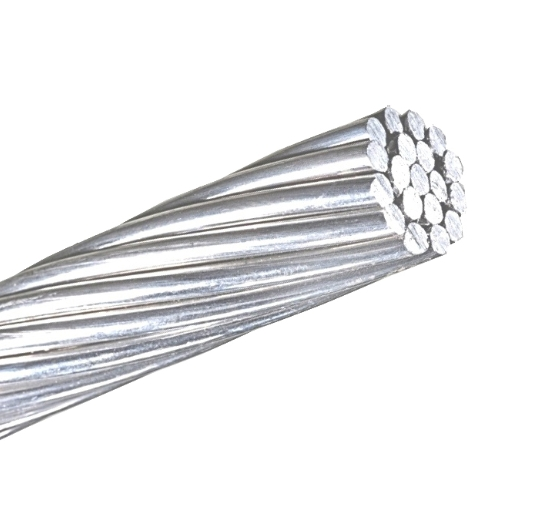

bare copper conductorBare Aluminum Conductors: Aluminium bare conductor is distinguished by their cost-effectiveness and lightweight nature. It is mainly used in overhead transmission and distribution networks. Despite their lower electrical conductivity compared to copper, the favorable physical attributes and economic benefits of bare aluminium conductors render them the favored option for expansive installations.

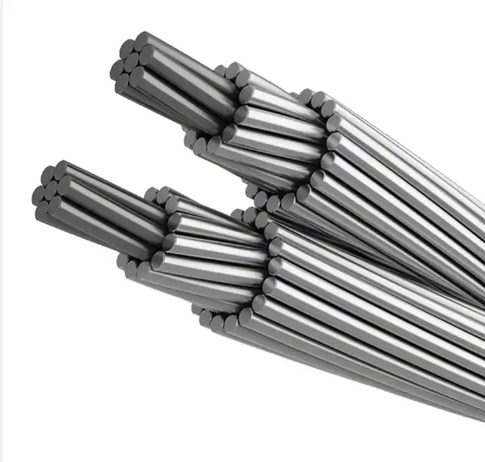

Aluminum ConductorAluminum Conductor Steel Reinforced (ACSR): ACSR represents a specialized type that merges the conductivity and lightness of aluminum with the toughness of a steel core. The specific blend makes the bare aluminum conductor more tensile strength. Therefore, it is ideal for applications involving large span bare overhead conductors that are subjected to high mechanical stresses.

ACSR

Every variety of bare conductor is engineered to address distinct electrical, mechanical, and environmental requirements, facilitating their broad application across numerous fields. The selection of the specific bare conductor type depends on a thorough evaluation of the electrical, mechanical and environmental requirements of the application. Subsequently, we can explore more about the installation and safety protocols for bare copper wire to enhance safety and operational efficiency.

Bare Copper Conductor Installation and Safety Guidelines

Proper installation and management of bare copper conductors maximize grid reliability and security. Following rigorous protocols guarantees the optimal performance of bare conductors while reducing hazards to individuals and assets. Here are some ways detailing key tips for expertly installing and handling bare copper conductors:

  1. Comprehensive Planning: The planning phase lays the foundation for a safe installation, including assessing environmental impacts, wiring and adherence to electrical codes. Confirm that everything from environmental conditions to compliance requirements are considered.
  2. Grounding System Integrity: It is specifically for grounding applications, designing an effective system that provides a low-resistance path to earth is fundamental. It includes choosing the right material for the ground rod and calculating the correct depth and location of the installation.
  3. Guaranteeing Electrical Safety: Maintaining appropriate clearances from the ground and structures mitigates the risk of accidental contact. We need to comply with established safety standards for minimum clearances, especially in overhead conductor installations where environmental factors may affect the positioning of the conductor.
  4. Corrosion Protection: To mitigate the risk of corrosion, it’s advisable to employ anti-corrosive agents or protective layers that prolong the lifespan of the conductor and preserve its condition, even in adverse environments.
  5. Securing Defense Against Mechanical Stress: Implementing safeguards such as conduits or barriers is imperative in high-traffic areas or locations susceptible to mechanical impacts to shield the conductors from harm.
  6. Execution and Verification: We must follow the correct installation specifications and installation methods, such as fully understanding the product and wearing personal protective equipment. Furthermore, conducting a comprehensive evaluation and electrical tests post-installation is necessary to assess the grounding system’s efficacy and the installation’s overall integrity.

Adherence to the fundamental aspect enables us to guarantee the secure and efficient setup of bare copper conductors. It can not only protect conductors from premature failure but also protect people and assets from electrical hazards. Meanwhile, the next section will shed light on the principles behind bare ground wires.

Why are ground wires bare?

Most people may notice the phenomenon that the ground wire is usually exposed. So why is it like that? There are a variety of reasons for not insulating grounding wires, including efficiency, safety and economic considerations:

  • Direct Earth Connection: The foundational role of a ground wire within electrical infrastructures is to furnish a secure conduit for fault currents to be channeled back to the ground. The paramount function mitigates the risk of dangerous voltage accumulations within electrical systems. The utilization of a bare wire optimizes the process by establishing a seamless and direct linkage with the earth or the grounding system’s elements, such as rods or grounding plates, thereby enabling the swift neutralization of fault currents.
  • High Conductivity and Safety: Removing insulation from grounding wires enhances the interface between the wire and the grounding system, improving the dependability of the electrical network’s protective features. The direct connection helps in quickly and efficiently redirecting fault currents back to the earth, significantly reducing the risk of electric shock or fire-related accidents.
  • Cost-Effectiveness: It can reduce material and manufacturing costs. Since ground wires are designed to be connected to grounding systems and not to carry operational currents under normal conditions, the absence of insulation does not compromise the functionality or safety of the wire. It makes bare ground wires a cost-effective solution for grounding purposes.
  • Ease of Identification and Maintenance: The unique appearance of bare ground wires simplifies identification and inspection and the distinctive difference helps to make certain proper installation and maintenance of the grounding wire.
  • Durability and Environmental Resistance: In numerous grounding scenarios, bare wire offers considerable advantages in terms of durability and resistance to environmental conditions. Since there is no insulation, bare wire is not affected by soil, moisture or various environmental factors. Otherwise, the performance of insulated wire degrades over time.

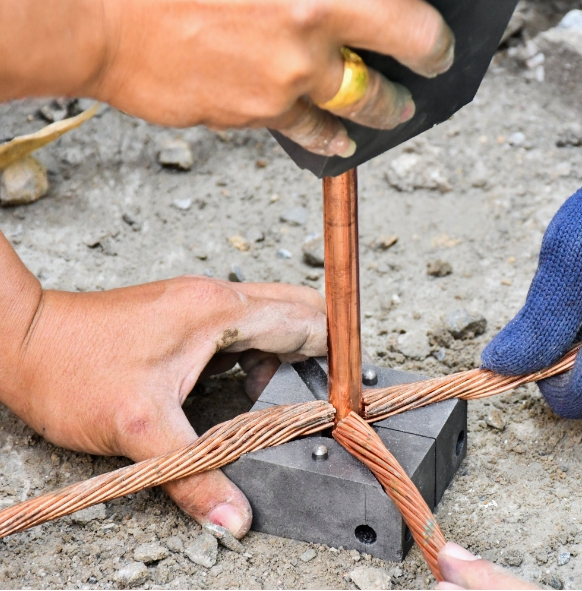

ground wire

The design choice to utilize bare ground wires is driven by their efficiency in safely conducting fault currents to the earth, the economic benefits of reduced material costs, and the practical advantages in system maintenance and durability. More importantly, we also need to consider the best source of procurement.

Where to buy bare copper conductors?

Bare copper conductors are an important component of electrical ground conductors and distribution systems and are available through a variety of purchasing channels to meet the diverse needs of consumers and professionals. Brick-and-mortar stores and online stores offer a wide selection of hard drawn copper wire for immediate and bulk purchasing needs. The convenience of outlets allows customers to compare different products and specifications to meet their specific project needs. Additionally, there are also specialty copper wire cable conductor distributors and wholesalers that offer customized services and volume pricing for large projects or industrial applications.

ZW Cable exemplifies what it means to be a manufacturer of quality products. Our selection includes an extensive variety of cable products and models that can be tailored to your needs, such as 4/0 bare copper wire, 2 AWG bare copper wire, and tinned copper wire. They are suitable for a wide range of electrical projects from large industrial power distribution networks to residential grounding systems. For customers who need reliable bare conductor cable, ZW Cable is a trusted partner that provides the expertise and resources to help you complete any size of electrical construction!
