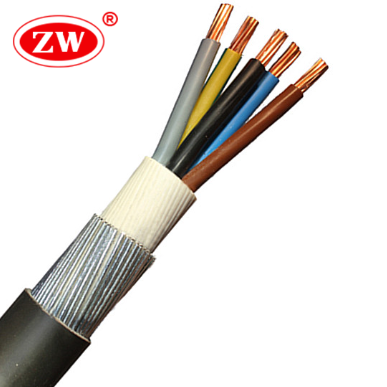

5 Core SWA Cable
- According to IEC and GB Standard
- Approved by ISO,CE, SGS
- Place of Origin: Henan, China
- In Stock
- Number of Cores: 5
- HS Code: 8544492100
5
- Product Details
The 5 core armoured cable functions as the primary power feed for 0.6/1kV circuits demanding distinct live, neutral, and earth connections.
The 5 core swa cable combines stranded copper conductors (Class 2), XLPE insulation for thermal stability, a steel wire armour that withstands impact and rodent attack, and a UV-stabilized PVC outer sheath suitable for direct burial or exposed outdoor runs.
It is specified for industrial power distribution, commercial building supplies, solar farm collector circuits, and any three-phase system where a separate earth is mandated—installed underground, in concrete, on cable trays, or clipped to structural steel.
- Specification
- Related Voltage: 0.6/1KV
- Test Voltage: 3.5KV/5Min
- Temperature Range: Max 90°C, Min -10 °C
- Laying Temperature: Not less than 0°C
- Max. Temperature During Short Circuit (≤5S): 250°C
- Min. Bending Radius: 6 × overall diameter

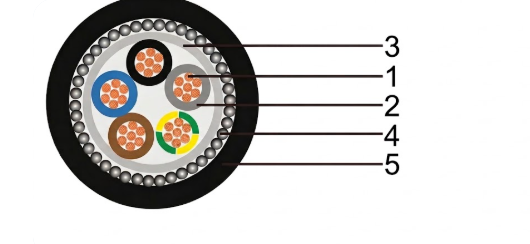

- Construction
-
Conductor: Class 2 stranded plain copper.
-
Insulation: XLPE (Cross-Linked Polyethylene). Core Colours: Brown, Black, Grey, Blue, Green/Yellow
-
Bedding: Extruded PVC.
-
Armour: Steel Wire Armour (SWA)
-
Outer Sheath: PVC
- Parameter
| No. Cores | Conductor Cross Section Area (mm²) | Cable Cross Section Area (mm²) | Actual Armour Cross Section Area (mm²) | Overall Diameter (mm) | Nominal Weight (kg/km) | Resistance of Copper Conductor (Ω/Km) at 20ºC |
| 5 | 1.5 | 143.07 | 19 | 13.5 | 390 | 12.1 |
| 5 | 2.5 | 176.63 | 22 | 15.0 | 465 | 7.41 |
| 5 | 4 | 211.13 | 25 | 16.4 | 579 | 4.61 |
| 5 | 6 | 274.51 | 40 | 18.7 | 820 | 3.08 |
| 5 | 10 | 349.49 | 46 | 21.1 | 1090 | 1.83 |
| 5 | 16 | 411.66 | 72 | 22.9 | 1400 | 1.15 |
| 5 | 25 | 655.64 | 88 | 28.9 | 2100 | 0.727 |
| 5 | 35 | 808.87 | 100 | 32.1 | 2580 | 0.524 |
| 5 | 50 | 1133.54 | 144 | 38.0 | 3850 | 0.387 |
