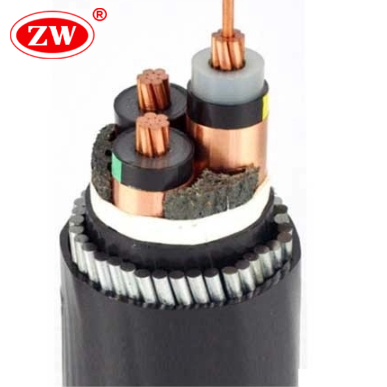

SWA 3 Core Armoured Cable
- According to IEC and GB Standard
- Approved by ISO,CE, SGS
- Place of Origin: Henan, China
- In Stock
- Number of Cores: 3
- HS Code: 8544492100
5

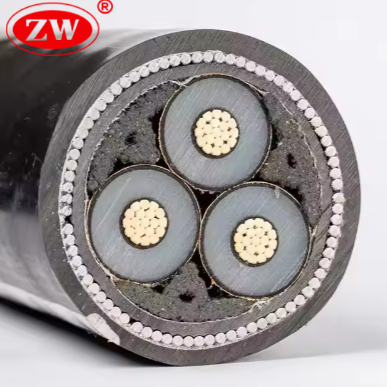

“3 Core Armoured Cable” refers to a heavy-duty electrical cable featuring three insulated conductors, reinforced with a protective metal layer (armour) and an outer sheath. Designed for both underground and exposed installations, the multi-core armoured cable combines high conductivity with exceptional mechanical protection. The “3 Core” configuration (typically brown, black, and gray phases) supports single- or three-phase power systems, while the armour—commonly Steel Wire Armoured (SWA Cable) or Copper Armoured—shields against physical damage, rodent attacks, and environmental stressors. Ideal for industrial, commercial, and infrastructure projects, the 3 Core Armoured Cable series includes versatile specifications like the 50mm 3 Core Armoured Cable for high-current applications and the 6mm 3 Core Cable for low-voltage lighting circuits.
Product Features
- The compressive strength of armored layer is improved more than non-armored cable, and the life of underground direct burial is ≥25 years.
- Low-smoke halogen-free (LSZH) type passes BS 6724 standard; Smoke density ≤ 50%; Toxicity index itc ≤ 0.5.
- Steel wire or copper armor layer is crush-resistant and maintains integrity in trenches, pipes or high-traffic areas.
- Resistant to moisture, oils, acids, UV rays and harsh climates.
- Compatible with 4 Core armored cable systems for 3-phase + neutral configurations
Cable Construction
- Conductor : Plain annealed copper Class 1 or 2
- Insulation : XLPE(Cross-Linked Polyethylene) rated at 90 °C
- Inner sheath : PVC (Polyvinyl Chloride)
- Armored : Galvanized Steel Wire
- Sheath : PVC or FR-PVC
- Sheath Color: Black
3 Core SWA Cable Specification:
- Related Voltage: 0.6/1KV
- Test Voltage: 3.5KV/5Min
- Temperature Range: Max 90°C, Min -10 °C
- Laying Temperature: Not less than 0°C
- Max. Temperature During Short Circuit (≤5S): 250°C
3 Core SWA Cable Datasheet:
|
Number of cores and
nominal cross section (mm²) |
Insulation thickness nominal (mm)
|
Sheath thickness nominal (mm)
|
Conductor resistance at 20°C max.(Ω/km)
|
Cable weight appr. (kg/km) |
|
3 x 1,5
|
0,7
|
1,8
|
12,1
|
147
|
|
3 x 2,5
|
0,7
|
1,8
|
7,41
|
187
|
|
3 x 4
|
0,7
|
1,8
|
4,61
|
243
|
|
3 x 6
|
0,7
|
1,8
|
3,08
|
315
|
|
3 x 10
|
0,7
|
1,8
|
1,83
|
495
|
|
3 x 16
|
0,7
|
1,8
|
1,15
|
712
|
|
3 x 25
|
0,9
|
1,8
|
0,727
|
1038
|
|
3 x 35
|
0,9
|
1,8
|
0,524
|
1342
|
|
3 x 50
|
1
|
1,8
|
0,387
|
1749
|
|
3 x 70
|
1,1
|
2
|
0,268
|
2451
|
|
3 x 95
|
1,1
|
2,1
|
0,193
|
3368
|
|
3 x 120
|
1,2
|
2,2
|
0,153
|
4061
|
|
3 x 150
|
1,4
|
2,3
|
0,124
|
5167
|
|
3 x 185
|
1,6
|
2,5
|
0,0991
|
6363
|
|
3 x 240
|
1,7
|
2,7
|
0,0754
|
8211
|
