10mm 3 Core Armoured Cable Per Meter

According to IEC and GB Standard
Approved by ISO,CE, SGS
Place of Origin: Henan, China
In Stock
HS Code: 8544492100

6 $ / Meter

5

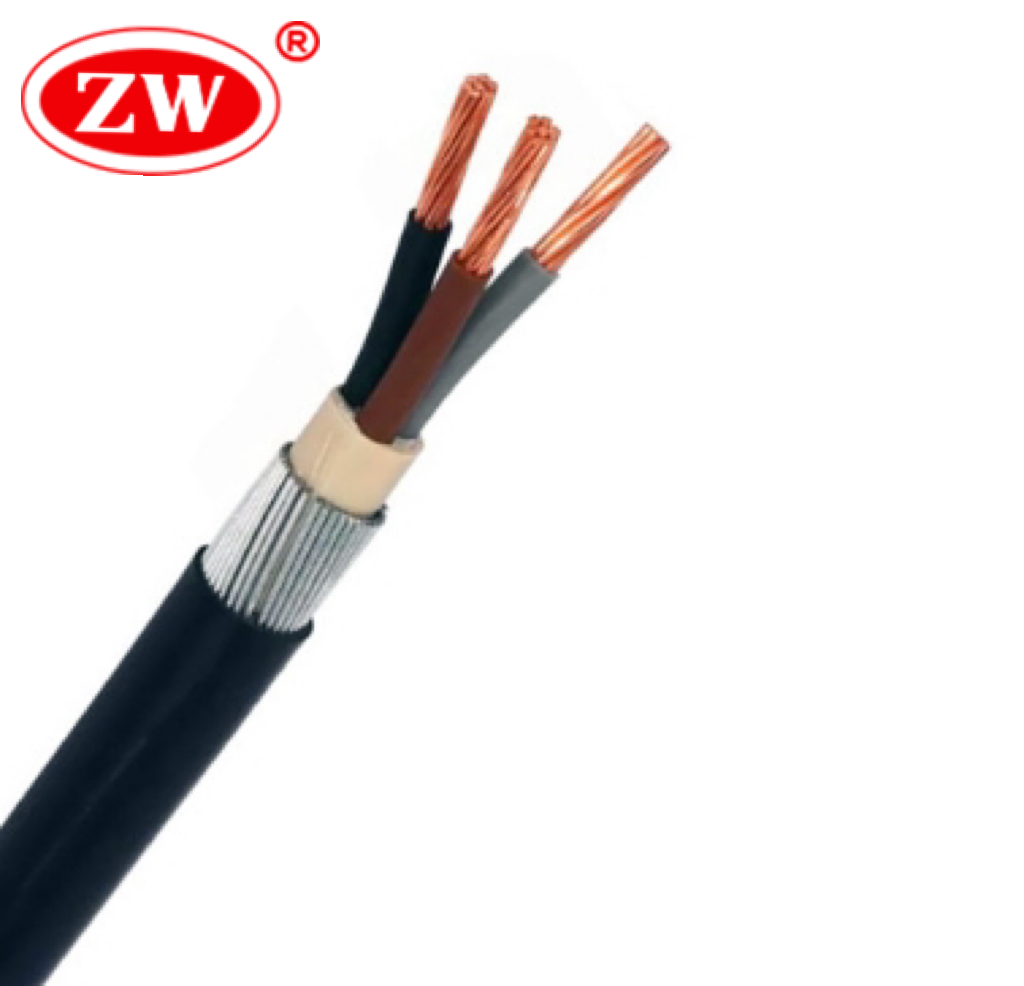

10mm Armoured Cable is an armoured electrical cable designed for harsh environments in industrial, construction, infrastructure and outdoor scenarios. Featuring 10mm² high-purity copper conductors for efficient conductivity, it incorporates a steel wire/tape armoured layer to safeguard against crushing, impacts, and rodent damage. The durable PVC outer jacket offers waterproofing, UV resistance, and protection against acids, alkalis, and temperature extremes (-10°C to 90°C). Compliant with fire safety standards IEC 60332-1 (flame retardant) and IEC 61034 (low smoke), it meets international certifications including IEC 60502-1, BS 5467, RoHS, CE.

10mm 3 Core Armoured Cable Diameter: 19.5mm
16mm Armoured Cable Amps: 73A
Related Voltage: 0.6/1KV
Test Voltage: 3.5KV/5Min
Temperature Range: Max 90°C, Min -10 °C
Laying Temperature: Not less than 0°C
Max. Temperature During Short Circuit (≤5S): 250°C

Conductor : Plain annealed copper Class 2
Insulation : XLPE(cross-linked polyethylene) rated at 90 °C
Inner sheath : PVC (Polyvinyl Chloride)
Armored : Galvanized Steel Wire
Sheath : PVC or FR-PVC (Black)

FAQ

What is a 10 mm armoured cable used for?

A 10 mm armoured cable is used for power distribution where mechanical protection is required, such as underground, outdoor, or industrial installations.

Can 10 mm armoured cable be used outdoors?

Yes. Armoured cables are designed for outdoor environments, offering resistance to mechanical damage and environmental exposure when properly installed.

Is a 10 mm armoured cable suitable for indoor use?

Yes. It can be used indoors where additional mechanical protection is required, provided installation complies with applicable electrical codes.
