When we choose “6 AWG wire” for installing or upgrading an electrical system, some of us may not know what it means or if it’s right for our needs. Many people encounter these questions when tackling electrical projects, and this guide will help you demystify some of the most common questions about 6 AWG wire and learn about the different characteristics of 6 AWG wire!
-
What is the diameter of the 6 AWG wire?

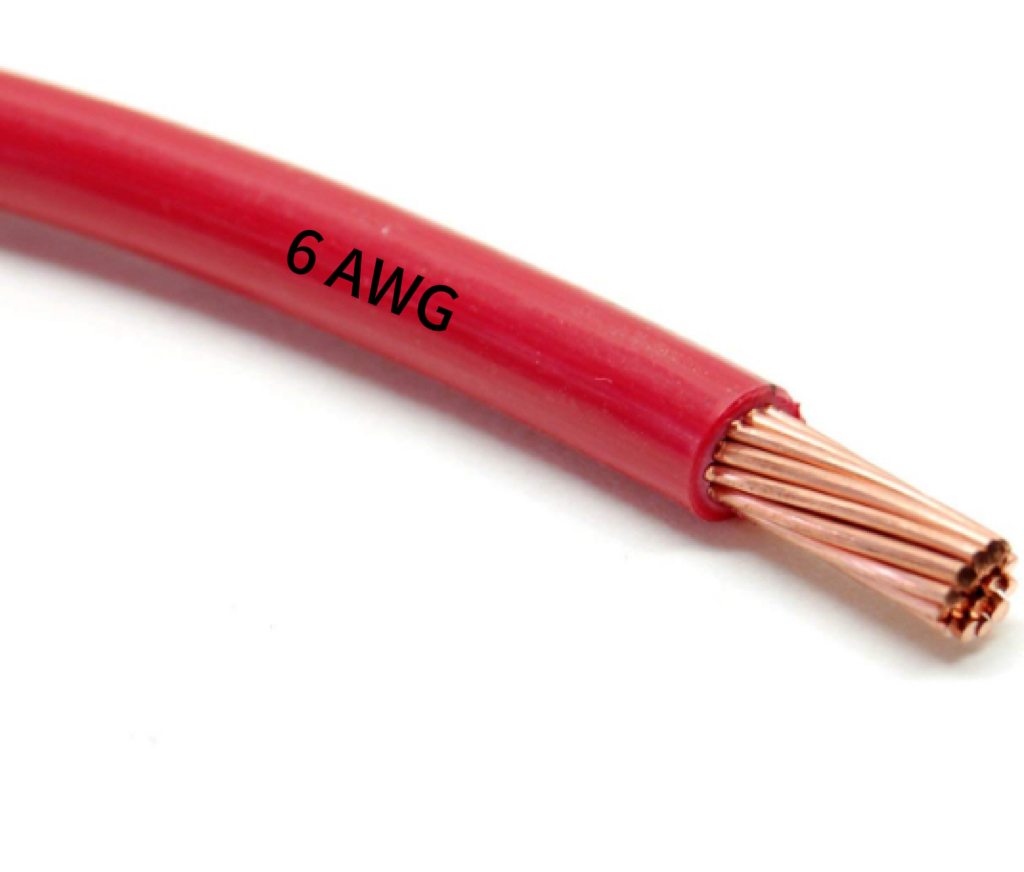

6 AWG (American Wire Gauge) The diameter of the wire is 4.11 mm. The larger the number in the AWG system, the smaller the actual diameter of the wire and the corresponding reduction in conductivity. e.g., 6 gauge solar cables have a larger diameter than 8 gauge solar cables.
-
How many amps can 6 awg wire handle?
The maximum current-carrying capacity of 6 AWG wire varies depending on wire insulation, ambient temperature, and whether the wire is in free air or installed in conduit. Typically, the current-carrying capacity range is approximately 55 to 65 amps for copper conductors in free air at standard temperatures. However, it is important to consult the National Electrical Code (NEC) or the cable manufacturer’s data sheet for specific applications, as these values may vary depending on installation conditions.
6 gauge aluminum wires and copper for current carrying capacity in free air:
Temperature (°C) |
Copper (Amps) |
Max. Amp Load of 6 AWG |
Aluminum (Amps) |
Max. Amp Load of 6 AWG |
---|---|---|---|---|
60 |
55 |
44 |
40 |
32 |
75 |
65 |
52 |
50 |
40 |
90 |
75 |
60 |
55 |
44 |
-
What is the difference between 6 AWG and 8 AWG wire?

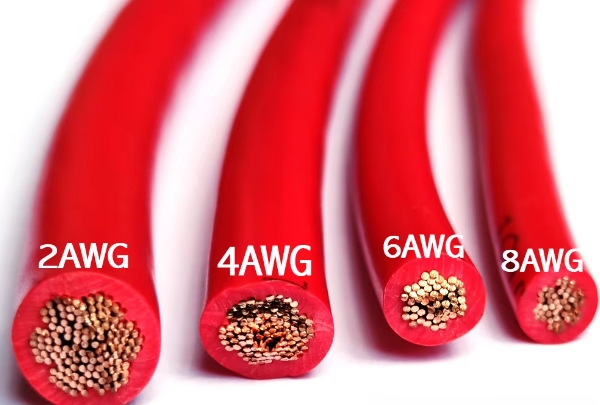

Physical Size: 6 AWG wire is thicker than 8 AWG wire. 6 AWG wire has a larger diameter, which allows it to handle more current without overheating. 6 AWG has an exact diameter of approximately 0.162 inches (4.11 millimeters), while 8 AWG has a smaller diameter of approximately 0.136 inches (3.45 millimeters).
Current Carrying Capacity: 6 ga wire carries more current than 8 AWG. For example, under free air conditions, 6 AWG copper wire can safely carry up to 55 amps or more. In comparison, 8 AWG wire is rated to carry approximately 40 amps with a margin of safety. It makes 6 AWG suitable for circuits with higher power requirements.
-
What are the common types of 6 AWG wires?
Building wire: Specifically THHN 6 AWG Wires, THHN-2, and XHHW. THHN and THHN-2 offer dual ratings for dry and wet conditions. They are typically made of copper and have thin, heat-resistant nylon jackets for conduit installations in dry conditions up to 90°C and in wet conditions up to 75°C. XHHW has stronger insulation and is designed for higher temperatures (up to 90°C in both wet and dry) and outdoor applications.
NM-B (Non-Metallic Sheathed Cable): It is a standard cable used for house wiring, available in 6 AWG with two or three conductors. It’s suitable for indoor installations and is not intended for direct burial or outdoor use.
Multi-Conductor Cables: Like the 4 Conductor 6 AWG mentioned, these cables have multiple insulated conductors within a single outer jacket, used for control circuits, power transmission in industrial settings, or audio and data applications.
6 Gauge Welding Cable: Welding Cable #6 is a heavy duty cable. It consists of flexible stranded copper conductors encased in EPDM rubber insulation. Welding cable is primarily used in power transmission welding equipment from source to electrode and in outdoor welding scenarios such as automotive.
6 Gauge Battery Cable: This type of cable is designed for automotive, marine and renewable energy systems that require high current. It usually has a multi-strand bare copper conductor for flexibility and durability.
-
What is 6 awg wire used for?
6 AWG wire is good for many types of work because it is thick and has a high ampacity, including the following:
Residential and Commercial Power Distribution: In residential and commercial buildings, 6 AWG wire is used in circuits that power heavy-duty appliances such as electric water heaters, central air conditioning units and furnaces. In addition, 6 AWG grounding wire meets electrical codes and standards and is effective in protecting electrical equipment and personal safety in public building facilities.
Automotive and Marine Electrical Systems: In vehicles and boats, 6 AWG cable is critical for connecting batteries to starter motors and alternators, as well as high-powered accessories such as winches or high-capacity battery packs, because of its ability to handle the inrush currents involved.
Renewable Energy Installations: In solar panel arrays and wind turbine systems, 6 AWG wire is used as the main power line from the panels or turbines to the inverters and battery storage, ensuring efficient transmission of the generated power.
Industrial and Manufacturing Equipment: In industrial environments, 6 AWG wire is used to connect motors, large control panels, and high-power machinery that can withstand constant high current draw without overheating.
Emergency Standby and Uninterruptible Power Supplies (UPS): For critical systems that require an uninterruptible power supply, 6 AWG wire is used in the wiring of standby generators and UPS systems to ensure reliable power transfer during mains failures.
-
How to identify 6 awg wire?
Distance: Longer wires can cause voltage drops, so consider the distance between the power source and the load. Longer distances may require thicker wires or compensating measures to keep the voltage stable.
Flexibility and Application: If the wire needs to be flexible (e.g., in appliances or mobile devices), choose stranded conductor 6 ga wire. For fixed installations, solid conductors may be more appropriate.
Environmental Factors: Select the type of wire that is appropriate for its intended environment. For example, if the wire will be used outdoors or buried, choose a cable suitable for direct burial or wet environments, such as THWN-2.
-
Where to buy cheapest 6 awg wire?
There are several options available when looking to purchase quality 6 AWG electrical wiring to make certain that you get a product that meets both safety standards and performance requirements. We can start by prioritizing reputable electrical supply stores, both brick-and-mortar and online. Large retailers (e.g., Home Depot, Lowe’s) or specialty electrical wholesalers such as Amazon, Grainger, or online platforms such as specialty electrical supply websites offer a convenient way to compare prices and read reviews.
If better durability and performance is desired, then we can be more confident in choosing a ZW Cable manufacturer. We typically stock a variety of wire gauges and offer options for different insulation types and lengths. For more cable questions, we’re here to answer them!
