4 Wire Cable: Application, Function&Color Code Explained

4 wire cables, comprised of four insulated conductors, are a pivotal component in contemporary electrical applications, serving a broad spectrum of electrical and data transmission needs. Their versatility is matched by their capacity to enhance safety and operational efficiency. Understanding their applications, design principles, and standard color coding is crucial for ensuring system safety and operational integrity, just as the selection between 3-wire and 4-wire configurations can significantly influence project outcomes. This article will delve into 4 wire cables to provide valuable insights for professionals and enthusiasts. Join us; let’s uncover the critical role that 4-wire cables play in today’s technologically advanced society.

4 core electrical cable



What is 4 wire cable used for?

4 wire cables are used in various electrical applications, catering to both power delivery and signal transmission needs. Its primary applications include:

  1. Electrical Power Systems:
  • Three-Phase Power Systems:

In commercial and industrial settings, 4 wire electrical cables are often used to carry three-phase electricity. Three-phase electricity is preferred for running heavy machinery and large motors due to its efficiency in delivering large amounts of power.

  • Single-Phase Systems with Additional Functionality:

In residential and some commercial settings, a 4-wire system can be used for single-phase power, allowing for both 120V and 240V supplies, where two wires are used for live (hot) and neutral, one wire for grounding, and the fourth wire for additional functions like a separate circuit or control signal.

  1. TelecommunicationsInfrastructure: 4 wire ethernet cables play a crucial role in telecommunications, enabling high-speed communication networks. They support the transmission of voice, data, and video, connecting data centers, facilitating broadband internet, and forming the backbone of cellular networks, thus powering the digital landscape. In other words, 4 wire cables enable everything from e-commerce and online education to telemedicine and remote work.
  2. Two-Way Circuits: These cables are also utilized in two-way circuits or when two separate circuits converge at a single point, providing independent control over different devices; commonly are 12 and 14 gauge 4 wire cables.

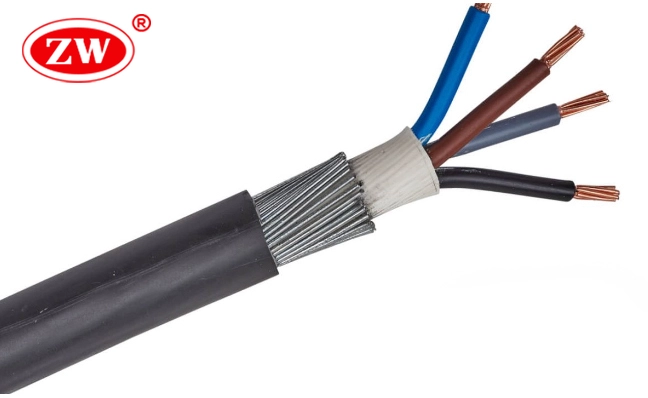

4 wire cable

  1. Industrial Applications: In sectors like construction, mining, or oil and gas, where cables may be exposed to outdoor elements or buried underground, 16mm 4 core armored cables are preferred for their enhanced protection against moisture, soil acidity, and physical impacts.
  2. Powering Appliances:  4 wire electrical wire can deliver both line-to-line 240V and line-to-neutral 120V AC power to household appliances such as electric dryers and ovens, ensuring safe and efficient operation.
  3. Control Systems: In industrial control systems, 4 core shielded cables are used to connect sensors and actuators to control units. The additional wires allow for separate power and signal lines, improving the reliability and accuracy of measurements and controls.
  4. Balanced Audio Transmission: Professional audio setups benefit from 4-wire cables for balanced audio signals, significantly reducing noise over long distances, which is key in studio and live sound settings.
  5. USB Cables: Standard USB cables are also a common example of 4-wire cables, utilizing two wires for power (positive and negative) and two for data transmission (D+ and D-), facilitating a wide range of digital connections. To convert a 4-wire to a 2-wire USB cable, you just need to connect or solder the power (red) and ground (black) wires while cutting the data transmission wires (white and green).

The design of 4 conductor wires renders them not only crucial for power distribution in both residential and industrial settings but also for control systems, security frameworks, and various machinery applications. Furthermore, the specific use of a 4-wire cable can vary greatly depending on the application’s specific requirements. In the following discussion, we will examine the roles of conductors in 4 wire cable, finding out why does power cable has 4 wires.



Why does power cable have 4 wires?

The use of a four-wire configuration in power cables is fundamentally driven by the requirements of the systems they are designed to support, offering flexibility, safety, and efficiency for various electrical applications. Here are the key reasons why power cables need to have four wires:

  • Three-Phase Power Distribution: One of the most common applications for four-wire cables is in three-phase power systems, within which three live wires carry the current, each wire or phase offset by 120 degrees to provide a more constant power delivery. While an ideal three-phase balanced system would have the cumulative current in all three phases equal to zero, in practice there is often an unbalanced load. Therefore, the inclusion of a fourth neutral wire is essential to complete the circuit by transferring any unbalanced current back to the source.
  • Safety and Efficiency: In three-phase systems, a four-wire configuration allows for the use of smaller, more cost-effective wiring while supporting the ability to transport more power efficiently, compared to single-phase systems.
  • Accommodating Mixed Loads: For premises with varied requirements like lighting, heating, and machinery, a four-wire setup offers the versatility to support both single-phase and three-phase loads. Single-phase loads connect through one of the phases and the neutral, whereas three-phase machinery uses all three phase wires.
  • Load Balancing: Four-wire system facilitates the distribution of loads across different phases, enhancing the power system’s overall efficiency. This balance helps reduce voltage drops and power loss over distances, beneficial in extensive facilities or industrial settings.
  • Enhanced Noise Immunity: 4 wire electrical wires can offer better protection against electromagnetic interference (EMI) for applications requiring data transmission or sensitive electronic operations. This is because the additional wires support differential signaling, which can reduce noise and improve data transmission quality by centralizing the signal difference between the wires.

In summary, four wire power cables provide a robust, safe, and efficient means of power distribution and are versatile enough to handle a wide range of electrical demands in residential, commercial, and industrial environments. It should be noticed that sometimes we may see 4 0 aluminum wire or 4/0 copper wire, they are not the same as 4 wire cable, the former refers to cable size with 4/0 awg(approxim 107.22mm²). Additionally, “4/0 cable” should also not be confused with “4 AWG cable,” which has a significantly smaller cross-sectional area of approximately 21.15mm².

Below, let’s consider the differences between three-core cables and four-core cables to better choose between them.



Do I need 3 core or 4 core cable?

Whether to use 3-conductor or 4-conductor cable depends on the specific requirements of the electrical installation, including the type of electrical system, the loads to be carried, safety requirements, and local electrical codes, and the following comparisons can help you make an informed decision:

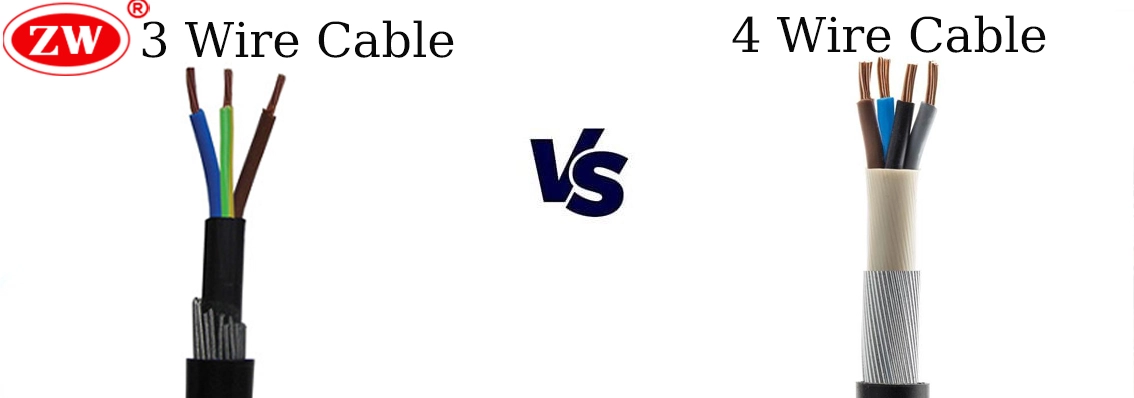

3 wire cable vs 4 wire

3-Core Cable:

  • Usage: Commonly used in single-phase electrical systems.
  • Components: Consists of a live wire, a neutral wire, and a ground wire.
  • Applications: Suitable for most residential and some commercial settings, where single-phase power is sufficient.
  • Safety: The ground wire provides an essential safety feature, offering a path for fault currents and reducing the risk of electric shocks.

4-Core Cable:

  • Usage: Often used in three-phase electrical systems.
  • Components: Contains three live wires (phases) and one neutral wire, sometimes with an additional ground wire (which would make it a 4+1cable).
  • Applications: Ideal for industrial and commercial environments where three-phase power is needed for heavy machinery and large electrical loads.
  • Safety: Provides balanced power distribution and can carry larger loads more efficiently. The neutral wire is crucial for handling any imbalance in the three phases.

Considerations for Choosing

  1. Electrical System Type: Determine if your setup requires single-phase or three-phase power.
  2. Load Requirements: Assess the power load of your installation. Heavy machinery typically requires a 4-core (three-phase) setup.
  3. Safety and Compliance: Check local electrical codes for safety requirements and compliance.
  4. Environment: In environments with high mechanical stress, such as vibration or frequent movement, a 4-core cable may be preferred due to its additional conductor providing greater structural integrity and redundancy. However, 3-core cable might be chosen in constrained spaces over 4 core cable due to its smaller diameter and flexibility, making it easier to install.
  5. Future Proofing: 3 phase 4 wire cable might offer more versatility for later upgrades.

In summary, the selection between 4-conductor and 3-conductor cables is contingent upon the specific demands of the application. 3-core cable is generally sufficient for single-phase power applications in residential wiring and light commercial settings. Conversely, in scenarios where three-phase power is utilized—predominantly in industrial contexts— 4-core cable becomes essential. In other words, 4 wire cables can support more complex, higher-power electrical installations than two wire and three wire cables; if you need more clarification about the best option for your project, consulting with professionals like ZW Cable is advisable; they can offer customized guidance, ensuring your system is safe, compliant, and suited to your needs. Lastly, let’s take a look at the 4 wire electrical cable color code.



What are the colours on 4 core cable?

4 core cable color coding is intended to distinguish the internal cores of the cable and denote different functions, such as live, neutral, and ground/earth, to ensure safety and compliance with electrical requirements. The colors of 4 wire cables can vary depending on the country and the specific wiring regulations. However, according to the IEC standards, 4 wire wires are color coded:

  • Brown – Live Wire (L1)
  • Black – Live Wire (L2)
  • Grey – Live Wire (L3)
  • Blue – Neutral Wire
  • Ground (if present) -green with yellow stripe.

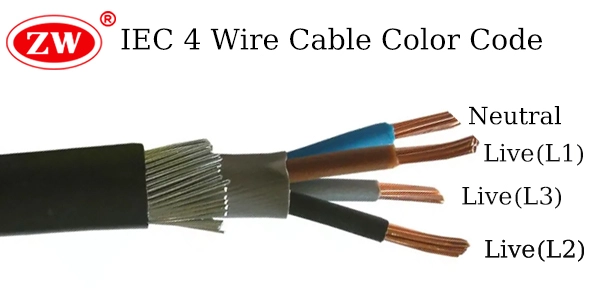

4 wire cable color code

In the United States, however, the color code for 4 core flexible cable, especially in low-voltage residential and commercial electrical systems, typically adheres to the following scheme:

  • Black – Hot Wire (first phase)
  • Red – Hot Wire (second phase)
  • White – Neutral Wire
  • Green or Bare Copper – Ground Wire.
electrical cable colours
Understanding electrical cable colours: Codes and Roles

Electrical cable colours might seem like a simple visual distinction, but their significance extends beyond aesthetics. The colors have been carefully chosen to guide the user through the intricate electrical system, which can be confusing to the layman but effortless for those who know even a little. Suppose you also want to become an effortless …...

Read More

Understanding and adhering to these color codes is paramount in preventing electrical mishaps and simplifying installation and maintenance. Always refer to the local electrical code or consult with a qualified professional to ensure compliance.



Bottom Line.

All in all, 4 conductor cable are fundamental to the development and maintenance of contemporary society’s electrical and communications infrastructure. Their role in enhancing safety, enabling effective power distribution, and supporting data transmission, underscores their importance in today’s increasingly connected and electrified world. Whether it’s 3 wire or 4 wire cable, cable color code is indispensable for accurate wiring. As we advance technologically, four-wire cables remain foundational in creating safe, effective, and durable electrical and data networks. These cables are indispensable in meeting the rising energy needs of growing urban and industrial areas. Should you have any inquiries regarding 4-wire cables, ZW Cable is ready to help. Feel free to reach out to ZW Cable with your questions.
