3 Wire Cable Explained: Application, Advantage& Color Code

Three-core cables are the most basic and versatile components in contemporary electrical systems, serving key roles in residential and commercial environments. Their design not only enables efficient power distribution but also significantly boosts safety. In this article, we’ll explore the applications, advantages, operational mechanisms, and standard color coding of 3 wire electrical cables, providing a detailed understanding of their importance and functionality.

What is 3 wire cable?

3 wire cable is an electrical cable comprising three insulated conductors: the live, the neutral, and the ground, each fulfilling a unique purpose. Depending on specific requirements, the 3-wire configuration might alternatively comprise two live wires and one neutral wire. The addition of a ground wire to a three-core cable is a major step forward compared to the older two-conductor cables that lacked a dedicated grounding wire, which improves the electrical system safety by reducing the risk of electrocution and fire. This 3 wire system is a standard in modern electrical installations and is in accordance with most electrical codes and regulations.

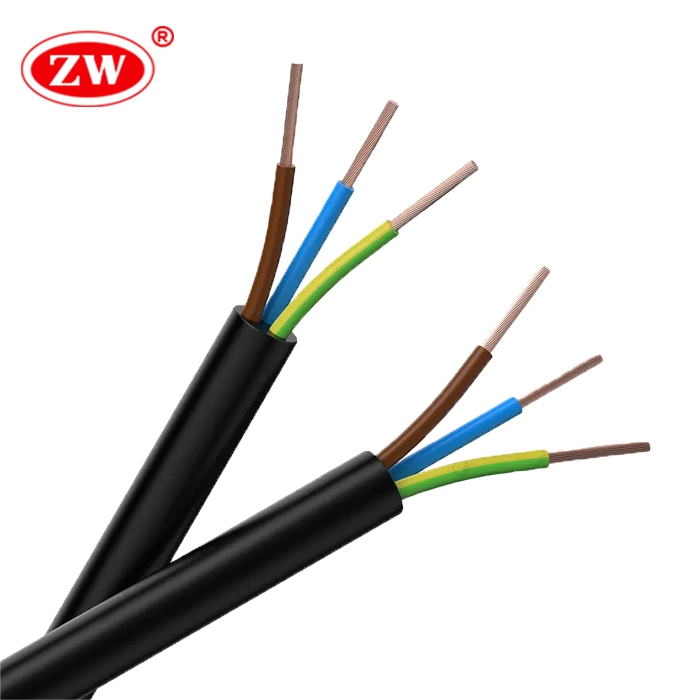

Three-wire cables are available in various specifications to meet diverse requirements, commonly are 3 conductor wire 22 AWG, 3 Conductor Wire 14 AWG, and 12 gauge 3 wire cable, which should be chosen based on the specific electrical load to achieve a safer and more stable electrical connection. Also note the distinction between the terms “3/0 wire” or “3/0 copper wire”, which are different from 3 wire cables; the former indicates cables with a size of 3/0 awg (approximately 85.01mm²), while the latter refers to cables with three conductors. 3 wire cable

Below, we’ll look at specific applications for three-wire cables.

What is 3 wire cable used for?

3 core cable is widely utilized in AC power systems for residential and commercial wiring to improve safety and power stability, common applications are:

  • Lighting Circuits: Many modern lighting fixtures, especially those involving metal enclosures, or setups with three-way switching, often use 3 wire cables for effective operation.
  • Power outlets: Most modern power outlets are connected with 18/3 wire to accommodate three-pin plugs.
  • Appliances: Large appliances like dishwashers, washers, and dryers often require 3 wire cable connection to ensure proper operation.
  • Indoor and Outdoor Installations: In outdoor areas or indoor spaces exposed to moisture(i, e bathrooms and kitchens), 12/3 MC cable is commonly used for additional safety.
  • Extension cords and power tools: To enhance safety in scenarios with an elevated risk of electrocution, 3 core cables are the preferred choice for both extension cords and power tools.
  • Three-Phase Power Systems: 3 wire shielded cables are often used in industrial and commercial three-phase power systems to transmit power over long distances and to operate heavy machinery.
  • Specialized circuits: Circuits that require separate control signals or additional neutrals to balance the load can also use three-core cables.

Three-core cables are adaptable to a wide range of voltages (from low to high-voltage), and their uses reflect the emphasis placed on safety and efficiency in today’s electrical system. And the widespread use of three-wire cables is closely linked to their advantages, here’s a look at the reasons for using three-core cables or the benefits 3 wire cables bring.

Why use 3 wire cable?

The 3-wire system is widely used because it balances the need for efficient power distribution with safety, and the chief advantages are:

  • Enhanced Safety: The inclusion of a ground wire in a 3-wire cable offers a safe route for fault currents, greatly diminishing the likelihood of electric shocks.
  • Improved System Stability: Grounding in these cables helps reduce electromagnetic interference. This protection extends to appliances, safeguarding them from power surges and electrical noise, thereby ensuring a more consistent and reliable power supply. This stability is crucial for the performance and longevity of both electrical and sensitive electronic equipment.
  • Effective Fault Protection: The design of 3 wire electrical wires allows for the integration of circuit protection devices like circuit breakers and fuses. These devices are crucial in quickly cutting off power in case of a fault, thereby safeguarding the circuit and averting potential hazards.

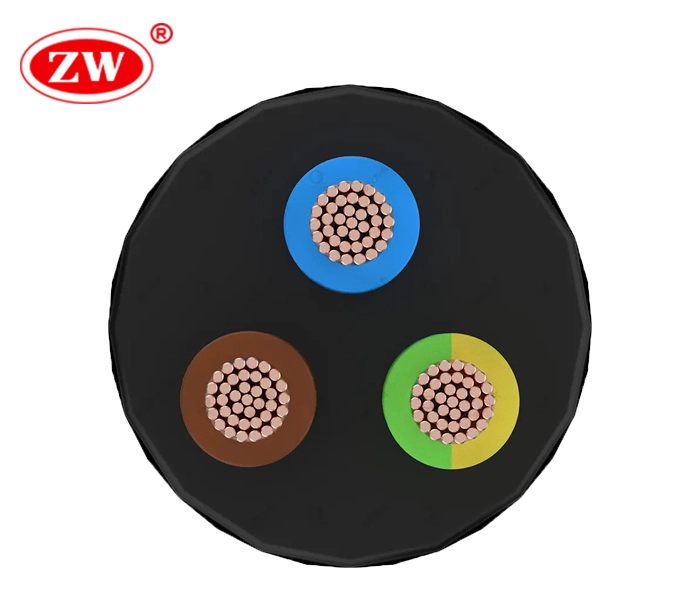

3 core cable

  • Versatile Multi-Wire Configurations: 3-wire circuits are adaptable, capable of feeding two separate circuits while sharing a shared neutral and ground wire. This flexibility is beneficial in various electrical installations.
  • Compliance with Electrical Codes: Many regional and national electrical codes require the use of grounding wires in residential, commercial, and industrial installations, especially where the risk of electric shock is high.

In brief, the use of 3-wire cable is critical for ensuring electrical safety, complying with modern electrical codes, reducing interference, and enhancing the overall reliability and quality of power in electrical installations. And after understanding the applications and advantages of 3 core cables, let’s delve into how 3 conductor cables work.

How does 3 wire work?

In a standard 3 wire system, the live wire carries the current to the appliance, while the neutral wire through carrying the current back to complete the electrical circuit. The grounding wire is an emergency path for stray currents and prevents electrocution by directing them to Earth away from the user.

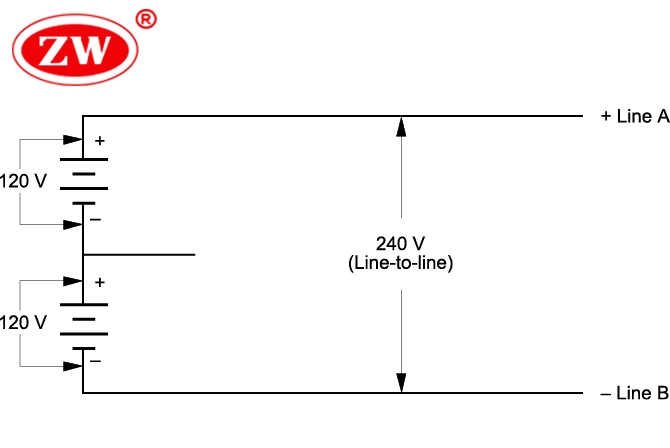

In specialized circuits, such as the single-phase, three-wire power supply system, three-wire cable usually comprises two 120V hot wires and one neutral wire. The two hot wires are 180 degrees out of phase, creating a 240V potential between them. Connecting from either hot wire to the neutral wire yields a 120V voltage. That’s say, in these systems, 3phase wire cables are capable of powering both 120V and 240V appliances. With the systems, the neutral wire is grounded for safety purposes.

how does a 3 wire cable work

The last thing we’re going to explore is the color code of the three-core cable.

What is color for 3 wire cable?

3 wire electrical cable colors code is crucial for accurate identification and safety. However, the color codes for 3 conductor wire can vary depending on the specific application and region. In the USA,  for instance, 3-wire cable color code is:

  • Black: Live or hot wire.
  • White: Neutral wire.
  • Green: Ground wire.

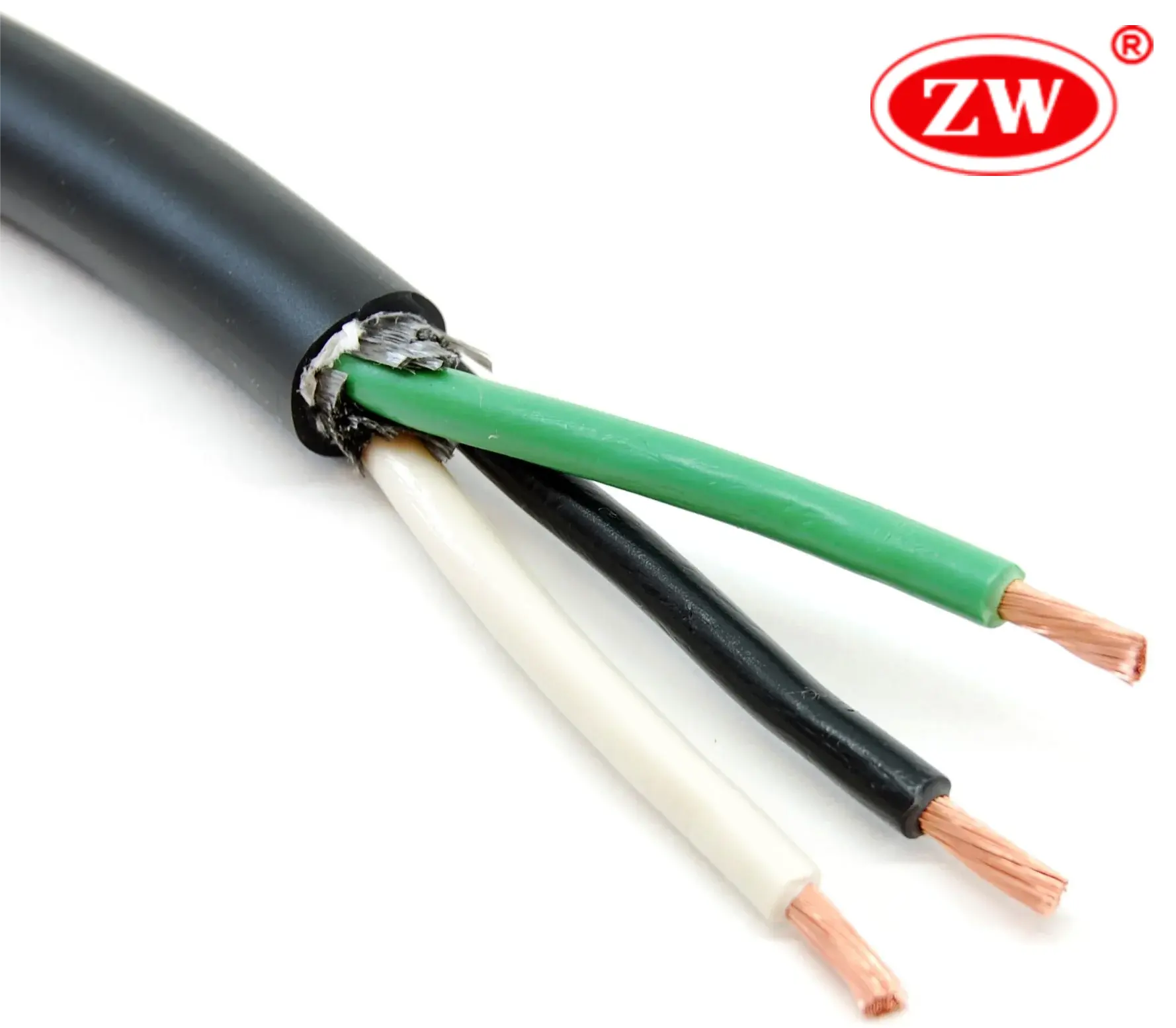

U.S. 3-wire cable color code


  • Black: Livewire 1
  • Red: Livewire 2
  • White: Neutral wire.
  • Bare Copper (optional): Ground wire.

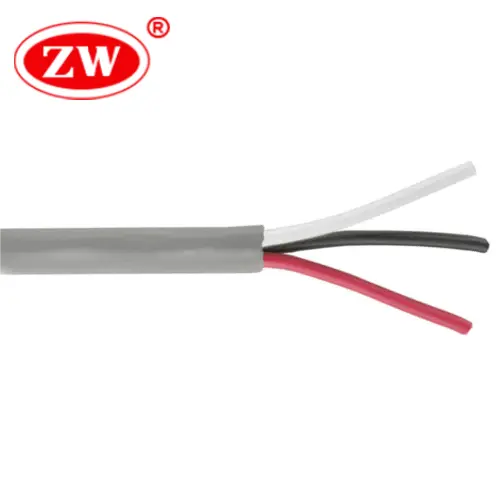

American 3 wire cable color code

However, according to the International Electrotechnical Commission (IEC), the standard wiring color codes for a 3-wire cable are green-yellow or bare copper  (ground), blue (neutral), brown (Live wire 1), black (Live wire 2), and gray (Live wire 3).

That is:

Phase 1 (L1): Brown

Phase 2 (L2): Black

Phase 3 (L3): Grey

Neutral: Blue

Ground (optional): green-yellow

Standard color coding is essential for easy identification during installation, maintenance, and troubleshooting. Since color standards may vary depending on regional electrical codes, it is always recommended to refer to local standards to ensure safe installation and maintenance practices. Should there be any confusion regarding color codes, ZW Cables is available to provide assistance.

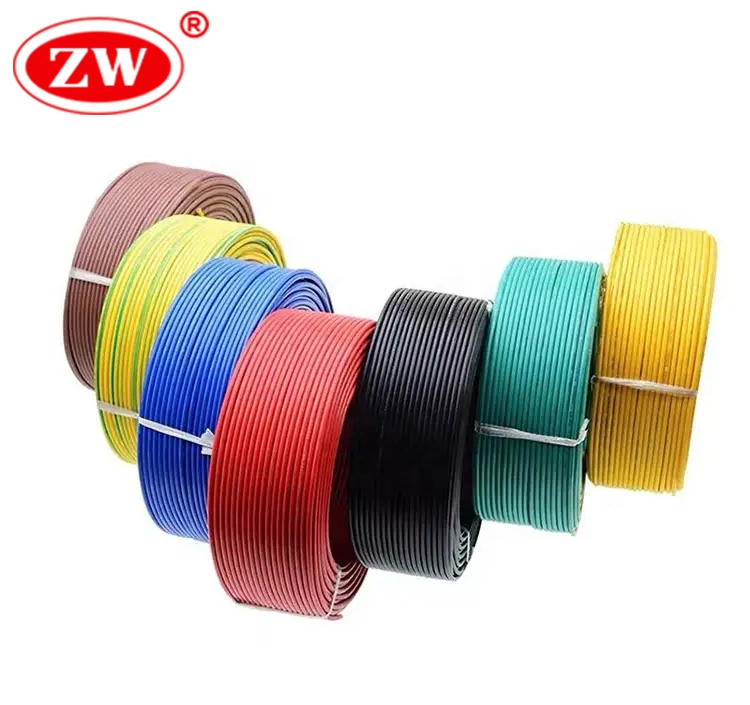

electrical cable colours
Understanding electrical cable colours: Codes and Roles

Electrical cable colours might seem like a simple visual distinction, but their significance extends beyond aesthetics. The colors have been carefully chosen to guide the user through the intricate electrical system, which can be confusing to the layman but effortless for those who know even a little. Suppose you also want to become an effortless …...

Read More

Bottom Line

To sum up, 3 wire cables are integral to modern electrical systems, characterized by their superior safety mechanisms, reduced electromagnetic interference, and adaptability. Familiarity with the functionality, benefits, and color coding of these cables is indispensable for anyone involved in electrical installations and maintenance. As technology progresses, the importance of employing well-grounded and dependable three-wire cable wiring solutions is accentuated, especially in residential and commercial environments.

Have more questions about 3 wire cables or need assistance in choosing the right wiring for your project? Contact ZW Cable for expert advice and top-quality electrical solutions.
