Electrical wiring in contemporary settings has become increasingly intricate. However, within this complex landscape, the 2 wire cable remains an exception because of its simplicity and adaptability. These cables are common fixtures in various electrical setups, performing essential roles in daily connectivity. This writing aims to delve into the detailed aspects of two-core cables, exploring their definition, applications, and methods for identifying cores and drawing a comparison with three-wire cables.
What is 2 wire electrical cable?

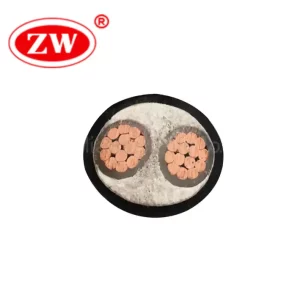

2 wire cable, as the name suggests, typically refers to an electrical cable with two insulated conductors, which is known as hot wire, and neutral wire. Each of the two conductors plays a distinct role: the ‘hot’ wire delivers the current to an appliance or fixture, while the ‘neutral’ wire completes the circuit by channeling the current back to the power source. The two wires are typically made of copper, a material chosen for its superior electrical conductivity and low resistance; and to enhance safety and durability, insulating materials are commonly PVC and XLPE.
Available in a variety of types and specifications, 2 wire cables are integral to numerous applications across electrical systems. Next, we will explore the diverse applications of 2-wire cables, highlighting their versatility and significance in modern electrical systems.
When is 2 wire cable used?
2 wire cables are predominantly employed in simple electrical circuits where grounding is not a primary concern or is achieved through alternative means. In this scenario the electrical load is moderate and the risk of shock is relatively low. Specific applications of 2-wire cables include:
- Residential Wiring: Utilized in household settings for lighting fixtures, power outlets, and other low-current applications, typically through the 14/2 building wire.
- Low-Voltage Applications:2-wire cables are commonly used in low-voltage applications like doorbells, thermostat wiring, or outdoor lighting systems.
- Branch circuits: 12 2 Metal-Clad (MC) Cable, usually rated for up to 20 amps, is often employed in settings where cables might be subject to damage, such as the branch circuits for outlets and fixed appliances in the basement.
- Communication and Signal Wiring: In telephone wiring and some types of network cabling, 16 2 shielded wires are used to transmit signals.
- Automotive and Industrial Use: In these sectors, 2-wire cables facilitate data communication between various microcontrollers and devices, commonly through a 2-wire CAN Bus system.
- 2 prong outdoor extension cord: These are another commonplace application of 2-wire cables.
It is important to note the distinction between the terms ‘2 aluminum wire‘ or ‘2 copper wire‘ and ‘2 core cable.‘ The former typically refers to the wire gauge (2 AWG wire), not the cable type. Following this is the identification of the live wire in the two-wire cable.
Which side of a two-wire cable should be used for “hot”?
In a two-wire cable, the hot wire is identified by its color coding. According to IEC standards, the hot wire in two core wire is usually brown, whereas the neutral wire is blue. Connecting the hot wire to the power source and the neutral wire to the return path is vital; incorrect wiring can lead to electrical hazards. However, this color scheme varies in different regions. For instance, the United States and some other countries, black or red is typically used for hot wires and white for neutral wires. Additionally, when grounding, the 2 wire cable should be only grounded on one side.
In cases where wires are not color-coded, alternative methods can be used for identification. For example, a wire in a two-wire cable that feels ribbed or textured may indicate that it is a neutral wire, while the other smooth wire is hot. And If the cable is attached to a plug, the narrower prong is usually connected to the hot wire. These physical characteristics can be useful for correctly identifying each wire. Moreover, a multimeter can also be employed for accurate identification.
Understanding the basics of 2-wire electrical wire lays the groundwork for exploring the differences between two-core and three-core cables, let’s delve.
2 wire vs 3 wire cable.
The difference between 2 wire and 3 wire cables is primarily based on their number of conductors, voltage capabilities, flexibility, and intended applications; here’s a breakdown:
1. Number of Conductors:
- 2 wire cable typically features two conductors (hot and neutral), whereas a 3 wire cable contains three conductors (hot, neutral, and ground).
2. Voltage Level:
- For two-wire cables, there is usually a hot wire that limits them to the single voltage level (usually 120V).
- In a 3-wire cable system, dual voltage availability (120V and 240V) can be used in the same circuit if two hot wires are comprised, which is particularly beneficial for large appliances.
3. Flexibility:
- 2 wire cables are more flexible and easy to install, but their range of applications is somewhat limited. 3-wire cables, on the other hand, while more complex to install, can be used for a broader range of installations.
4. Applications:
- 2 Wire Cable: Suited for simple single-phase electrical needs, such as small household appliances, extension cords, power tools, and indoor lighting circuits.
- 3-Wire Cable: For higher power split-phase applications, including residential and commercial outlets, HVAC systems, and areas susceptible to moisture (such as kitchens and bathrooms); these are also preferred for larger appliances and outdoor installations where additional safety is essential.
In summary, the choice between 2-wire and 3-wire cables depends on the specific requirements. 2-wire cables are adequate for basic electrical devices in simpler settings, while 3-wire cables provide enhanced safety and versatility for more complex, high-power electrical systems. Below, let’s address a common query: Does a 12 2 cable include a ground wire?
Does 12 2 wire have a ground?
Yes, a 12 2 wire typically does include a ground. The designation “12 2” in electrical wiring refers to the cable having two conductors, each of 12 gauge (approx 3.33mm²). Alongside, there is usually a third conductor – a bare or green insulated ground wire. Someone may wonder, if a two-core wire cable also contains another ground wire, that doesn’t become a three-core wire cable, why still call it two-core wire cable?
Well, In electrical terminology, when we refer to a “2-wire” or “3-wire” cable, it’s common to count only the insulated conductors in the cable, not including the ground wire as it does not carry current under normal operation. Additionally, there is another reason: electrical systems were not always equipped with ground wire, but as safety standards evolved, the ground wire became a standard addition; for ease of communication within the industry, the original naming convention persisted. Therefore, while it’s called “12/ 2” wire, it effectively has three conductors in total, i.e. hot, neutral, and ground.
Bottom Line.
In summary, 2 wire electrical cables are essential for straightforward electrical applications. Despite their simplicity, 2 core cable can adequately meet the requirements of modern electrical standards, providing efficient functionality for various uses. Moreover, the incorporation of an additional ground wire further elevates safety. For individuals embarking on house wiring projects, ZW Cable, recognized as one of the top 10 electrical cable manufacturers, offers a diverse selection of 2-core house wires at competitive prices. For detailed pricing and product information on 2 wire cables, interested parties are encouraged to contact ZW Cable directly.
