2 AWG & 2/0 AWG Wires: The difference

Suppose you’re undergoing a major home renovation and need to rewire part of your electrical system. To do so, you need the right electrical wiring. You’re at a cable manufacturer picking out electrical products, and you have two choices: 2 AWG and 2/0 AWG. Both of these wires seem to be up to the job, but which one should you choose, and what’s the difference between them?

While both 2 AWG and 2/0 AWG wires are capable of handling high currents, they differ in diameter, ampacity, and specific applications. Choosing the wrong wire can compromise the safety and efficiency of your project. In this blog post, we’ll dive into the differences between these wires to help you make an informed decision for your next project.

Understanding AWG: American Wire Gauge Systems

The American Wire Gauge (AWG) system is the standard method of measuring wire size in the United States. The gauge number in the AWG system indicates the diameter of the wire, with larger gauge numbers indicating smaller diameters and smaller gauge numbers indicating larger diameters. For example, if we use the common cable gauge 12 vs 14 gauge wire, then 14 gauge copper wire is thinner and smaller in diameter than 12 gauge copper wire. It is important to note that AWG measurements only take into account the diameter of the internal copper wire and do not include the outer jacket of the wire.

The Importance of Amperage in AWG Systems

In addition to diameter, a wire’s ampacity-the maximum current-carrying capacity without generating excessive heat or damage-is a key factor affected by wire gauge, temperature, and type of insulation. The AWG standard provides a reliable method of determining the suitability of a wire for a variety of applications based on the thickness of the wire.

About”2 AWG Wire”

2 gauge battery cable

2 AWG wire is also known as 2-gauge wire. It has a diameter of 0.258 inches (6.54 mm). Typically used in applications requiring high current capacity, this wire is ideal for industrial areas, heavy machinery, and large appliances.

The amperage of 2 AWG wire varies with temperature: 115 amps at 140°F (60°C), 130 amps at 167°F (75°C), and 150 amps at 194°F (90°C). The cable can transfer power safely and effectively in a range of settings and circumstances thanks to its amperage range. Whether powering heavy-duty motors or supporting large electrical systems, 2 AWG wire provides the reliability and strength needed for demanding applications.

About”2/0 AWG Wire

2/0 AWG Wire

2/0 AWG wire has a diameter of 0.365 inches (9.27 mm), which is larger than 2 AWG wire. This thicker wire is typically used in power distribution and transmission applications since it can withstand higher currents.

This wire has a high current-carrying capacity. It can carry 135 amps at 140°F (60°C), 155 amps at 167°F (75°C), and 180 amps at 194°F (90°C). It has efficiency and versatility across a wide range of temperatures.

2 AWG & 2/0 AWG Wires: The difference

Here is a more detailed table to help you visualize the difference between 2 AWG & 2/0 AWG Wires.

Specification2 AWG Wire2/0 AWG Wire
Diameter (inches) 0.257 (6.54 mm) 0.365 (9.27 mm)
Ampacity at 60°C 95 amps 135 amps
Ampacity at 75°C115 amps155 amps
Ampacity at 90°C 130 amps 180 amps
Typical ApplicationsPower distribution, grounding, bonding Power distribution, transmission, grounding, bonding
Flexibility Less flexible due to smaller diameterMore flexible despite larger diameter

The comparison between 2 AWG and 2/0 AWG wires shows significant differences in their specifications and suitable applications. The 2/0 AWG wire is noticeably larger in diameter at 0.365 inches (9.27 mm), compared to the 2 AWG wire’s diameter of 0.257 inches (6.54 mm). This increase in size enables the 2/0 AWG wire to carry more current safely. Additionally, the lower resistance of 2/0 AWG wire compared to 2 AWG wire means that it can more efficiently transmit power over long distances.

In terms of ampacity, the 2/0 AWG wire outperforms the 2 AWG wire across all temperature ratings. At 60°C (140°F), the 2/0 AWG wire can handle up to 135 amps, whereas the 2 AWG wire carries 115 amps. As temperatures rise, the disparity grows larger, with the 2/0 AWG wire supporting 155 amps at 75°C (167°F) and 180 amps at 90°C (194°F), compared to the 2 AWG wire’s respective capacity of 130 amps and 150 amps.

Both wires are commonly used for grounding and bonding, but the thicker 2/0 AWG is preferred in applications demanding stronger performance. The 2/0 AWG wire is a flexible option for experts since, even with its greater size, it retains some degree of flexibility that can make installation easier in a variety of electrical systems.

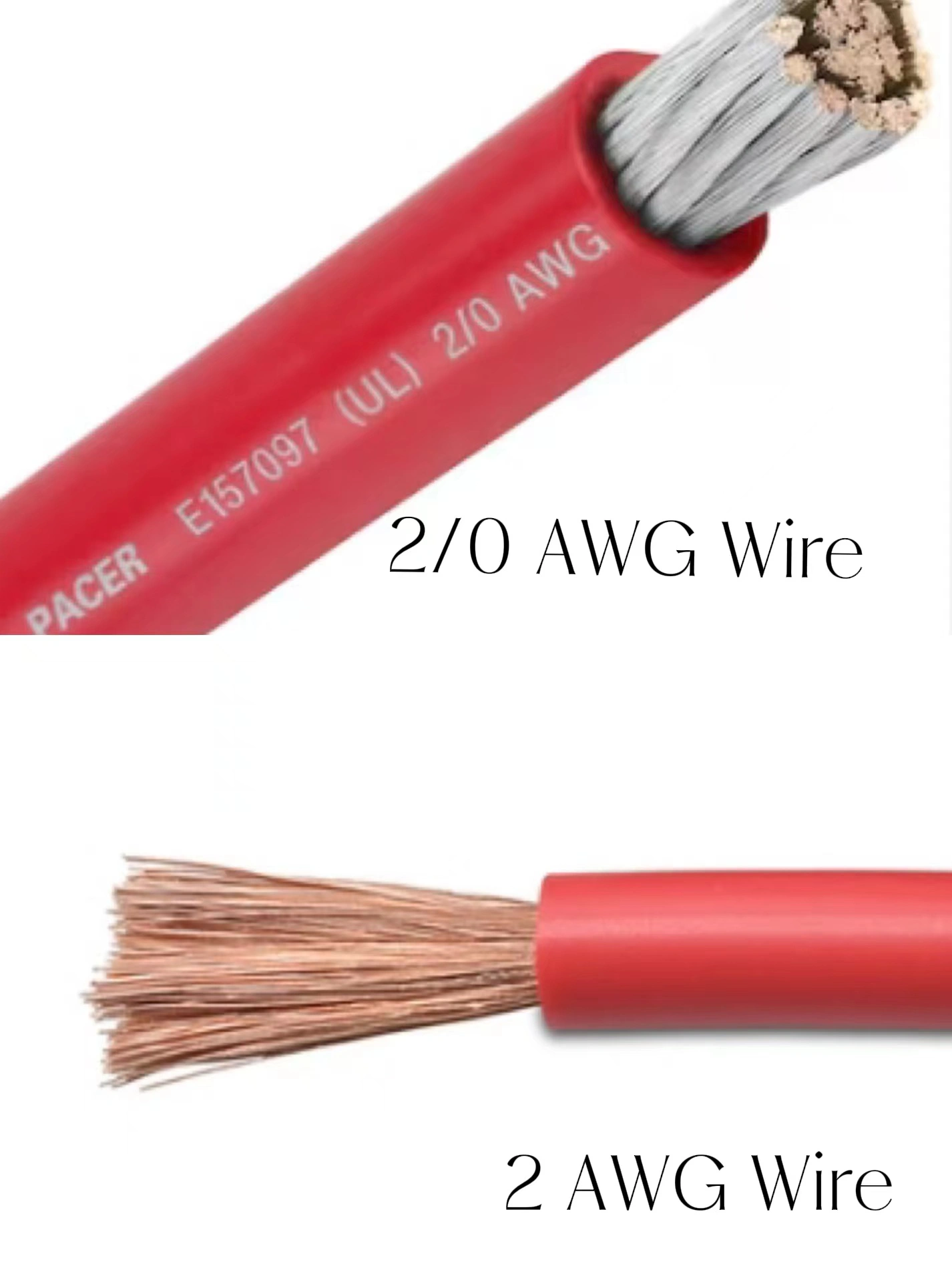

2 AWG & 2/0 AWG Wires

What to consider when choosing different gauge wires?

Choosing the right wire for any electrical application is critical to ensuring safety, efficiency and performance. However, we need to focus on the three most important factors before doing so – amperage, materials and environmental conditions.

  1. Amp rating – Ampacity is the amount of current a wire can safely carry without overheating. It depends on the gauge, material and installation conditions of the wire. In other words, there are maximum and minimum values of amperage that we need to be concerned about. The amperage of the wire must match the requirements of the electrical load to prevent potential hazards such as overheating or electrical fires.
  2. Materials of wires – The most common materials used for wires are copper and aluminum wires, each of which has different properties. Copper wire has a higher capacity than aluminum wire of the same gauge, which means that aluminum wire must be larger to reach the capacity of copper wire. This difference in conductivity is critical when choosing the right wire for a job or project.
  3. Environment – Understanding the environment in which the wire will be used is critical to choosing the right product. Factors such as temperature, humidity, the presence of chemicals, and physical wear and tear can affect the type of wire needed. For example, wires installed outdoors require UV and water resistant insulation, while wires installed in hot environments require materials that are resistant to high temperatures without deterioration. In addition, mechanical protection may be required in environments where there is a risk of damage to the wire.

Beginners always prioritize relevant factors to prevent hazards and increase reliability!

Conclusion

Understanding the difference between 2 AWG and 2/0 AWG wire is paramount to choosing the right wiring for your needs. The main differences between 2 AWG and 2/0 AWG wires are their diameters, amperage, and resistance. Overall, 2 AWG wire has a smaller diameter and lower ampacity than 2/0 AWG wire, while 2/0 AWG wire has a lower resistance.

You should choose different wire sizes based on the specific requirements of your project. For expert advice and quality wiring solutions, rely on ZW Cable for reliable, efficient products.
