An integral part of designing an electrical system is choosing the appropriate wire gauge, notably 12 gauge vs 14 gauge wire. Wire gauge significantly influences the overall performance and safety of an installation. So how do you make a choice on a specific situation?
For instance, if you’re planning a complex outdoor lighting system that needs to traverse a large yard to reach a distant garden. Then 12-gauge wire is a more favorable choice since it can transmit power more efficiently with less energy loss. Or, if you’re looking to install simply indoor light fixtures, 14-gauge wire may be the right choice to meet your needs while reducing the cost and difficulty of installation. From this point of view, each of the two specifications has its focus. Here is a comprehensive comparative analysis to help you make the best decision.

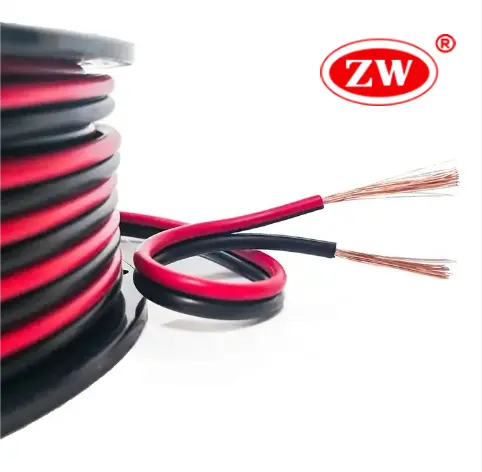

Understanding 12 Gauge Wire
12 gauge wire stands out in the electrical wiring domain due to its specific construction and dimensions. 12 gauge wire diameter is 2.05 mm. Characterized by a thicker diameter relative to higher gauge numbers, 12 wire is constructed to handle a substantial current load efficiently.The larger cross-sectional area of 12-gauge wire also contributes somewhat to its ruggedness. The larger the cross-sectional area, the lower the resistance and the higher the current. The construction makes it suitable for a range of applications, particularly in settings where durability and high performance are required.
Its capacity to safely carry up to 20 amperes of current makes it ideal for medium to high-load circuits. Additionally, the lower resistance offered by its thicker build significantly minimizes voltage drop, especially important in longer cable runs. Next, we focus on the equally important application of 14 gauge wire. It fulfills different but equally important electrical needs.
Also learn more about 12 gauge wire：12 Gauge Wire: Discovering Its Properties, Usage And Tip
What is 14 gauge wire used for?
The diameter of the 14-gauge wire is roughly 1.63 mm. 14 gauge wire performs a specific purpose in short electrical run systems and has a thinner profile than 12 ga wire. Major applications include:
Lighting Circuits: It is ideal for residential lighting circuits and provides sufficient capacity for standard lighting requirements.

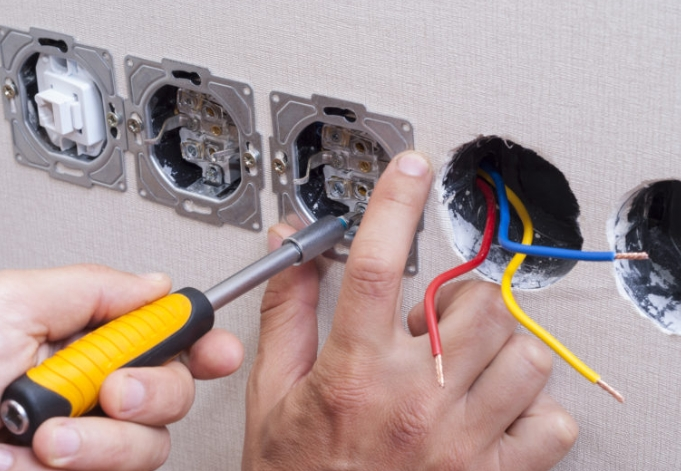

Standard Wall Outlets: In living spaces without major appliances, 14 awg wire is commonly used for outlets, which can support typical household electrical demands efficiently.
Indoor Use: 14 Gauge house wiring is predominantly utilized in interior electrical systems. Its optimal insulation and size are specifically suited to the controlled environmental conditions common in residential environments.
In essence, 14 gauge electric wire is a versatile and cost-effective solution for a variety of low-current electrical applications. While 14 gauge thhn wire has its distinct uses, there are scenarios where replacing it with 12 gauge wire might be beneficial. So let’s investigate further to see if this would be a better option.
Can I use 12 gauge wire instead of 14?
It is feasible in some cases. Most people frequently choose to replace 14-gauge wire in electrical installations with 12-gauge wire in order to increase performance. However, we should consider the following premises:
- Enhanced Current Capacity: The 12 gauge wire is capable of safely handling higher currents (up to 20 amperes), which provides a significant safety margin in circuits where load fluctuations might occur.
- Reduced Overheating Risk: Due to its thicker construction, 12 thhn wire is less prone to overheating under standard loads, thereby enhancing the overall safety of the electrical system.
- Physical Installation Factors: When upgrading to thicker wire is required, we should take into consideration a review of the physical components of the installation such as conduit and connectors. It is done to guarantee compatibility with the increased wire size.
- Budget and Handling: While 12 awg power cable offers greater safety and capacity, it also comes with a higher cost and reduced flexibility. It might impact installation ease and overall budget.
- Compliance and Safety Codes: A 12-gauge wire can be used in a circuit originally designed for 14-gauge if all other components in the circuit are rated correctly and comply with the electrical code.
To conclude, substituting 14 gauge wire with 12 gauge can be a practical and beneficial move, especially for improving safety and capacity. The decision requires thoughtful evaluation of the specific needs of the installation, cost factors, and adherence to safety regulations. So what are the distinctions in performance between the both in the commonly used speaker field?

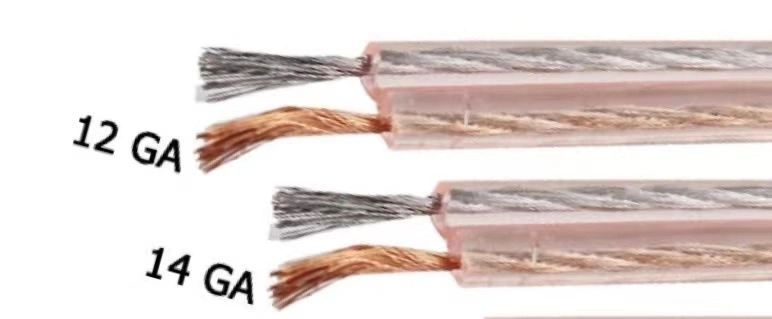

12 gauge vs 14 gauge wire speaker wire
Recognizing the unique advantages of 12-gauge and 14-gauge wire provides an important foundation when selecting wire gauges for your speaker system. The choice depends on several key factors:
Cable Run Length:
- Short Runs (Within 50 feet.): 14 gauge AWG solid or stranded wire is typically sufficient to strike a balance between sound quality and practicality over short distances.
- Long Runs（50 feet away）: 12 gauge wire is preferred due to its lower resistance, which is key for maintaining audio signal integrity over extended distances.
Power Handling Capacity:
- High-Power Systems: The larger diameter of AWG 12 wire is better suited for high-power speaker systems, as it keeps minimal signal loss and supports higher power levels.
- Standard Systems: For less demanding setups, 14 gauge wire often suffices and can handle standard power levels effectively.
Audio Quality Concerns:
- 12 gauge speaker wire: It offers superior performance in preserving sound quality and is often used in professional or high-end audio setups.
- 14 gauge speaker wire: The 14 wire is sufficient for maintaining good audio quality in typical home audio systems and smaller-scale installations.
Ease of Installation:
- 12 gauge speaker wire: Its thicker profile can present challenges in terms of flexibility and ease of routing.
- 14 gauge speaker wire: In contrast, it is more pliable and simpler to handle. Thus, it facilitates installation in tight spaces or with intricate wiring.
Ultimately, the choice between 12 and 14 gauge wires for speaker systems should be considered in totality based on the specific needs of the audio setup.
You can read more for comparative information：
nothing found.When to use 12 or 14 gauge wire?
Deciding when to use 12 or 14 gauge wire hinges on a thorough understanding of each wire’s capabilities and the specific demands of the electrical circuit in question. The following three factors are being used as a reference for us to choose when to use them:
- Firstly, the current capacity of the circuit is a decisive factor. The 12 gauge wire, with its 20 amp capacity, is ideal for circuits powering large appliances and heavy machinery. Conversely, the 14 gauge wire, typically handling up to 15 amps, aligns better with less intensive circuit requirements.
- Moreover, the length of the wire run and the associated voltage drop is another important consideration. For longer cable runs, 12 ga wire is ideal due to its lower resistance, which helps maintain adequate voltage levels at the endpoint. For shorter runs where voltage drop is minimal, 14 gauge wiring is a more cost-effective and practical choice.
- Finally, cost implications cannot be overlooked. Generally, 14 gauge wire is less expensive than 12 gauge wire. Therefore, it is a cost-effective choice in appropriate applications. In large-scale installations or where budgets are limited the factor is especially important.
Each gauge of wire has a different emphasis to apply to different electrical installation situations. We just have to choose according to our needs.
Conclusion
Picking the right wire gauge for 12 AWG and 14 AWG is a important step in an electrical installation. Therefore, we have highlighted the different capacities and uses of each wire gauge. The decision is vital for maintaining the safety, effectiveness, and functionality of electrical setups. Additionally, choosing a wire from a leading manufacturer is equally essential. Opting for high-grade wires from a reliable provider assures compliance with safety norms and enhances the durability and dependability of the electrical system. In the long run, this option minimizes potential problems and maintenance costs while being a key consideration for any electrical project.
